Kepco BOP36-6M
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±36V |
| Output Current Range | 0 to ±6A |
| Output Power | 216W |
| Operating Mode | Two-quadrant (Bipolar) Voltage and Current Source |
| Programming Interface | Analog and IEEE 488.2 (GPIB) / RS232 via optional plug-in cards |
| Voltage Ripple & Noise | 5mV RMS typical |
| Current Ripple & Noise | 5mA RMS typical |
| Load Regulation (Voltage) | 0.01% of full scale |
| Input Power Requirements | 105-125V / 210-250V AC, 47-63Hz, single phase |
| Form Factor | Rack Mountable, 3U |
Kepco BOP36-6M Options:
- BOP36-6M - -488B - GPIB hex card (listen-only GPIB support in binary format)
- BOP36-6M - -488D - GPIB BCD card (listen-only GPIB support in Hex format)
- BOP36-6M - -TMA - Long range serial card/VXI (BIT TMA-27, connects BOP to single-address multiple instrument serial bus for long range >300m control from IEEE 488.2, RS 232 or VXI-based hosts)
- BOP36-6M - -4882 - Talk-listen 4882 card (BIT 4882, 12-bit IEEE 488.2 talk-listen control with SCPI support)
- BOP36-6M - -4886 - Talk-listen 4886 card (BIT 4886, 16-bit IEEE 488.2 talk-listen control with SCPI support)
- BOP36-6M - -232 - Serial RS 232 interface
- BOP36-6D - D - Digital display version (substitute suffix "D" in place of "M" for optional digital meters)
| Model | BOP36-6M |
|---|

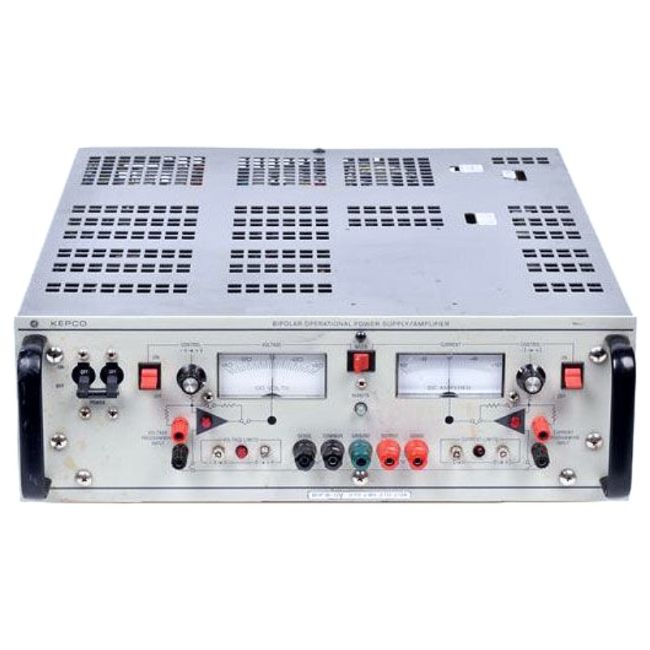

Kepco BOP36-6M Bipolar DC Power Supply
The Kepco BOP36-6M Bipolar DC Power Supply is a versatile piece of test equipment that functions both a bipolar DC power supply and a high-powered operational amplifier with full 4-quadrant, bipolar operation. Their output is capable of both sustained d-c and the replication of arbitrary a-c waveforms. In the Kepco BOP36-6M, the voltage and cur outputs can be controlled smoothly and linearly through the entire rated plus and minus ranges, passing smoothly through zero with no polarity switching. Kepco BOP36-6M Bipolar DC Power Supply offers optional control via GPIB or RS-232 interfaces, enabling integration with computers for automated testing setups.
Kepco BOP36-6M Bipolar DC Power Supply is a high speed power operational amplifiers that can be used to provide dynamically agile voltage for test and simulation. They are not general purpose power supplies. By the nature of the bipolar high speed design, they do not have any energy-storage noise discriminating output capacitors. To realize the full high speed potential of BOP, the load characteristics should be mainly resistive. If the load is capacitive, (>0.1 microfarad), the BOP must be slowed to avoid oscillation. This is accomplished in voltage mode by increasing the value of the feedback capacitance. Special terminals on the user port are available to slow the Kepco BOP36-6M Bipolar DC Power Supply for optimum current-mode stability into inductive loading.
Specifications for the Kepco BOP36-6M Bipolar DC Power Supply Include:
| Current | 6 A |
| Voltage | 36 V |
| Power | 200 W |
| Frequency | 47-65Hz |
