Kepco BOP50-2M
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±50V |
| Output Current Range | 0 to ±2A |
| Output Power | 100W |
| Operating Mode | Two-quadrant (Bipolar) Voltage and Current Source |
| Programming Interface | Analog and GPIB (IEEE 488.2) |
| Voltage Regulation (Load) | 0.01% of full scale + 2mV |
| Current Regulation (Load) | 0.01% of full scale + 0.5mA |
| Output Ripple and Noise | Less than 5mV RMS (voltage mode) |
| Input Power Requirements | 105-125V / 210-250V AC, 47-63Hz, Single Phase |
| Operating Temperature Range | 0°C to 40°C |
Kepco BOP50-2M Options:
- BOP50-2M - -488B - GPIB hex card (listen-only GPIB support in binary format)
- BOP50-2M - -488D - GPIB BCD card (listen-only GPIB support in Hex format)
- BOP50-2M - -TMA - Long range serial card/VXI (BIT TMA-27, connects BOP to single-address multiple instrument serial bus for long range >300m control from IEEE 488.2, RS 232 or VXI-based hosts)
- BOP50-2M - -4882 - Talk-listen 4882 card (BIT 4882, 12-bit IEEE 488.2 talk-listen control with SCPI support)
- BOP50-2M - -4886 - Talk-listen 4886 card (BIT 4886, 16-bit IEEE 488.2 talk-listen control with SCPI support)
- BOP50-2M - -232 - Serial RS 232 interface
- BOP50-2D - D (suffix) - Digital display version (substitute suffix "D" in place of "M" to specify digital meters)
| Model | BOP50-2M |
|---|

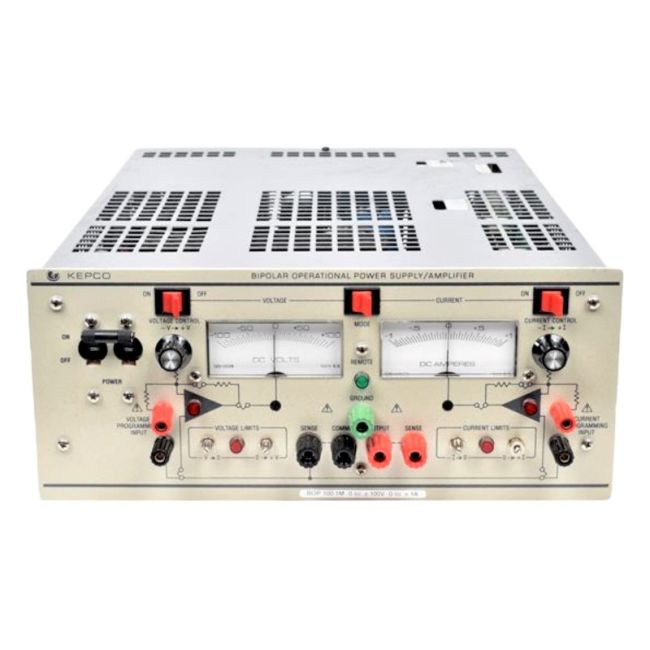

KEPCO BOP50-2M Bi-Polar DC Power Supply
The Kepco BOP50-2M, while fully rated power supplies, are also high-powered operational amplifiers with full 4-quadrant, bipolar operation. Their output is capable of both sustained d-c and the replication of arbitrary a-c waveforms. The voltage and cur outputs can be controlled smoothly and linearly through the entire rated plus and minus ranges, passing smoothly through zero with no polarity switching. The BOP50-2M are high speed power operational amplifiers that can be used to provide dynamically agile voltage for test and simulation. They are not general purpose power supplies. By the nature of the bipolar high speed design, they do not have any energy-storage noise discriminating output capacitors.
To realize the full high speed potential of the Kepco BOP50-2M, the load characteristics should be mainly resistive. If the load is capacitive, (>0.1 microfarad), the BOP50-2M must be slowed to avoid oscillation. This is accomplished in voltage mode by increasing the value of the feedback capacitance. Special terminals on the user port are available to slow the BOP for optimum current-mode stability into inductive loading.
Specifications for the KEPCO BOP50-2M Bi-Polar DC Power Supply Include:
| Voltage | 50V |
| Amperage | 2A |
| Rated Power | 100W |
