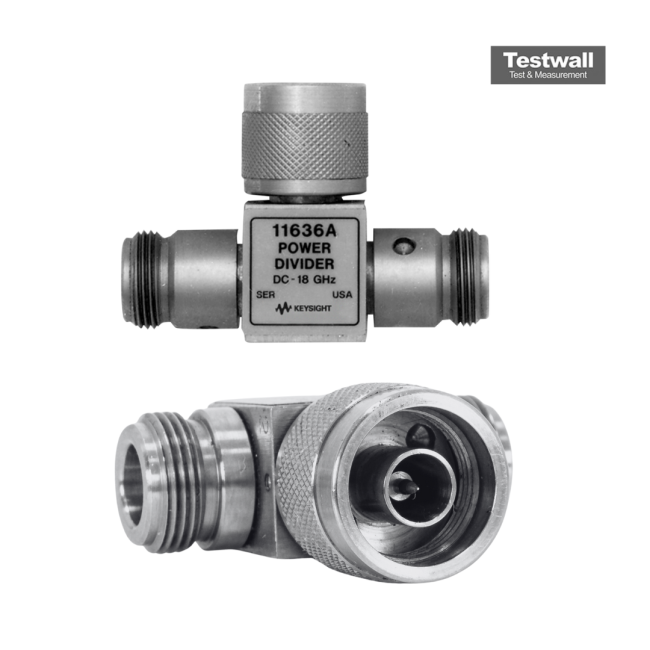

Keysight (Agilent) 11636A
Power Divider, DC to 18 GHz
DC to 18 GHz Frequency Range
50 Ohm Impedance
APC-7 (7mm) Connector Type
2-way, 0 dB (equal split) Power Split Ratio
3.5 dB typical Insertion Loss
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Impedance | 50 Ohm |
| Connector Type | APC-7 (7mm) |
| Power Split Ratio | 2-way, 0 dB (equal split) |
| Insertion Loss | 3.5 dB typical |
| Isolation | 20 dB minimum |
| VSWR | 1.25:1 maximum |
| Maximum Input Power | 1 W (30 dBm) |
| Operating Temperature | 0°C to +55°C |
| Device Type | Power Splitter/Divider |
Keysight (Agilent) 11636A Options:
- 11636A - 1250-1743 - Precision 3.5 mm (m) to type-N (m) adapter
- 11636A - 1250-1750 - Precision 3.5 mm (m) to type-N (f) adapter
- 11636A - 1250-1744 - Precision 3.5 mm (f) to type-N (m) adapter
- 11636A - 1250-1745 - Precision 3.5 mm (f) to type-N (f) adapter
- 11636A - 1250-1746 - Precision 3.5 mm (m) to Precision 7 mm adapter
- 11636A - 1250-1747 - Precision 3.5 mm (f) to Precision 7 mm adapter
- 11636A - 85027-60007 - Precision 3.5 mm (m) to Precision 3.5 mm (m) adapter
- 11636A - 85027-60005 - Precision 3.5 mm (f) to Precision 3.5 mm (f) adapter
- 11636A - 85027-60006 - Precision 3.5 mm (m) to Precision 3.5 mm (f) adapter
- 11636A - 11752-60105 - 3.5 mm gage set (f) for periodic gaging of connectors
- 11636A - 11752-60106 - 3.5 mm gage set (m) for periodic gaging of connectors
- 11636A - 8710-1765 - Torque wrench, 5/16", 96 N-cm (8 in-lb) for mating two precision 3.5 mm connectors
- 11636A - 8710-1582 - Torque wrench, open-end, 5/16", 60 N-cm (5 in-lb) for mating a precision 3.5 mm connector to an SMA connector
| Model | 11636A |
|---|
The Agilent 11636A is a dc to 18 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent 11636A power divider/combiner is recommended when making wideband comparison measurements with an Agilent 8757 scalar vector network analyzer.
- Maximum SWR: 1.35
- Insertion loss: 6.0 dB typical
- Maximum amplitude tracking: 0.5 dB
- Maximum phase tracking: 2 deg typical
