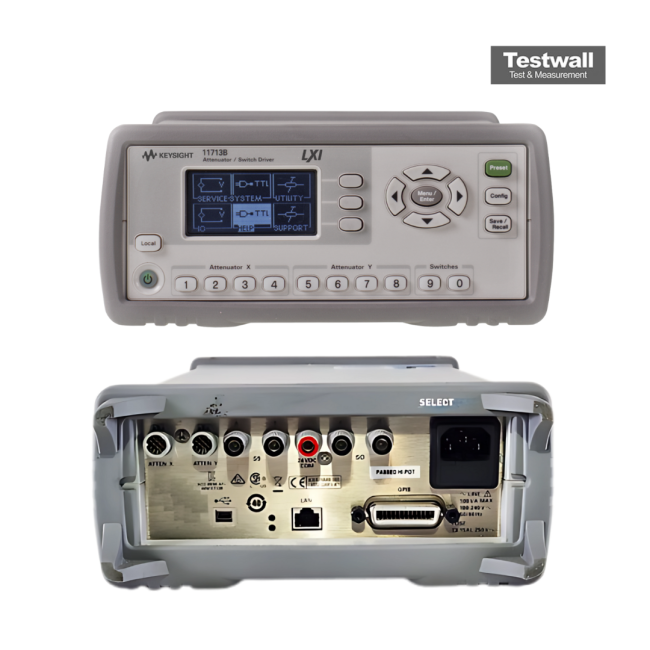

Keysight (Agilent) 11713B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Number of Switch Channels | 2 independent attenuator/switch driver channels |
| Output Voltage | 0 to +28 V DC per channel |
| Maximum Output Current | 600 mA per channel |
| Control Interface | GPIB (IEEE-488), RS-232 |
| Compatible Attenuators | Designed to drive Keysight 8494, 8495, 8496 series step attenuators and switches |
| Number of Control Bits | Up to 7 bits per channel (128 states) |
| Power Supply Requirements | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 212.6 mm x 88.1 mm x 348.3 mm (half-rack, 2U) |
Keysight (Agilent) 11713B Options:
- 11713B - STD - Standard configuration, full compatibility to 11713A
- 11713B - LXI - LXI class-C configuration, additional USB/LAN connectivity
- 11713B - 001 - Viking connector to 10-pin DIP connector
- 11713B - 101 - Viking connector to viking connector
- 11713B - 201 - Viking connector to 12-pin conductor cable, bare wire
- 11713B - 301 - Viking connector to (4) ribbon cables
- 11713B - 401 - Dual-viking connector to 16-pin DIP connector
- 11713B - 501 - Viking connector to (4) 9-pin Dsub connectors
- 11713B - 601 - Viking connector to 16-pin DIP connector
- 11713B - 701 - Viking connector to 14-pin DIP connector
- 11713B - 801 - Viking connector to (4) 10-pin DIP connectors
- 11713B - 908 - Rack mount kit for one instrument
- 11713B - 909 - Rack mount kit for two instruments
| Model | 11713B |
|---|
The Keysight 11713B attenuator/switch driver provides remote or front-panel drive control for 2 programmable attenuators and 2 SPDT switches. The Keysight 11713B can also be used to independently control up to 10 switches. Designed with both benchtop and ATE environments in mind, this flexible, stand-alone driver provides an intuitive user interface, a variety of switching options, software programmability and remote control features for quick, easy design validation and automated testing.
An integrated power supply eliminates the need for an external power source. Each Keysight 11713B is offered with nine optional plug-in drive cables to provide point-to-point connection to Keysight programmable attenuators and switches. The driver response time is less than 10 microseconds.
