Keysight (Agilent) 16089D
Alligator Clip Lead (4 Clips)
Kelvin Clip Lead Set Fixture Type
LCR Meters, Impedance Analyzers Compatible Instruments
4-Terminal Kelvin Connection Measurement Terminals
40 V DC Maximum Voltage
100 mA RMS Maximum Current
| Attribute | Value |
|---|---|
| Fixture Type | Kelvin Clip Lead Set |
| Compatible Instruments | LCR Meters, Impedance Analyzers |
| Measurement Terminals | 4-Terminal Kelvin Connection |
| Maximum Voltage | 40 V DC |
| Maximum Current | 100 mA RMS |
| Frequency Range | DC to 2 MHz |
| Cable Length | 1 m (approximately) |
| Connector Type | BNC Connectors |
| Operating Temperature | 0°C to 55°C |
| Compatible Models | Keysight E4980A, E4981A, E4982A, 4263B, 4284A, 4285A, 4294A |
Keysight (Agilent) 16089D Options:
- 16089D - 16089-04004 - Cover Top
- 16089D - 0515-0914 - Screw Flat Head M3X0.5 L6
- 16089D - 0340-1085 - Insulator Alligator Clip Red
- 16089D - 0340-1086 - Insulator Alligator Clip Black
- 16089D - 1400-1252 - Alligator Clip
- 16089D - 7121-2696 - Wire Marker "V"
- 16089D - 16089-01201 - Short Bar
- 16089D - 0515-1550 - Screw
| Model | 16089D |
|---|
Keysight (Agilent) 16089D Alligator Clip Leads

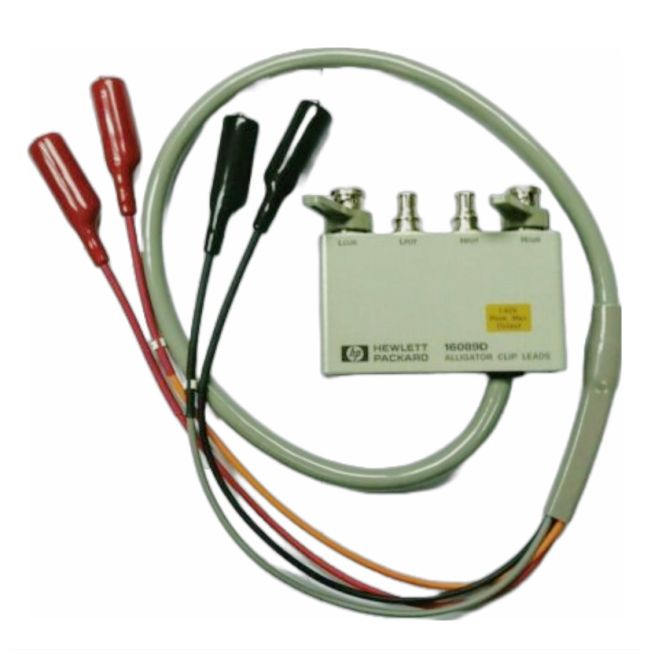

The Keysight 16089D makes it possible to measure odd-shaped components that cannot be measured with conventional fixtures. It is equipped with four alligator clips.
Specifications for the Keysight (Agilent) 16089D Alligator Clip Leads Include:
- Measurement Instrument: 4192A, 4194A (Impedance Mode),4263B, 4278A, 4284A, 4285A and E4980A
- Frequency: 5Hz to 100kHz
- DC Bias: -35V to +35V
- Operating Temperature: 0 to 55degC
- Terminal Diameter: 5mm or less
- Clip: Four terminal (Hpot, Hcur, Lpot, and Lcur)
- Cable Length: Approx. 0.94m (from connector to clip tip)
- Terminal Connection: BNC, 4 terminal-pair
