Keysight (Agilent)
Keysight (Agilent) 16092A
Spring Clip Fixture
Spring Clip Lead Fixture Fixture Type
LCR Meters and Impedance Analyzers (e.g., Keysight 4284A, 4285A, 4294A) Compatible Instruments
DC to 30 MHz Frequency Range
4-Terminal Pair (4TP) BNC Connector Connector Type
Approximately 1 meter (3.3 ft) Lead Length
| Attribute | Value |
|---|---|
| Fixture Type | Spring Clip Lead Fixture |
| Compatible Instruments | LCR Meters and Impedance Analyzers (e.g., Keysight 4284A, 4285A, 4294A) |
| Frequency Range | DC to 30 MHz |
| Connector Type | 4-Terminal Pair (4TP) BNC Connector |
| Lead Length | Approximately 1 meter (3.3 ft) |
| Measurement Configuration | 4-Terminal Pair Kelvin Connection |
| Component Compatibility | Suitable for leaded components and small devices |
| Residual Parameters | Low residual inductance and resistance for accurate impedance measurements |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Primary Application | Impedance measurement of discrete components such as resistors, capacitors, and inductors |
Keysight (Agilent) 16092A Options:
- 16092A - (no options listed in datasheet for this model) - Spring Clip Test Fixture for lead and SMD components, frequency range DC to 500 MHz, 7 mm terminal configuration
| Model | 16092A |
|---|

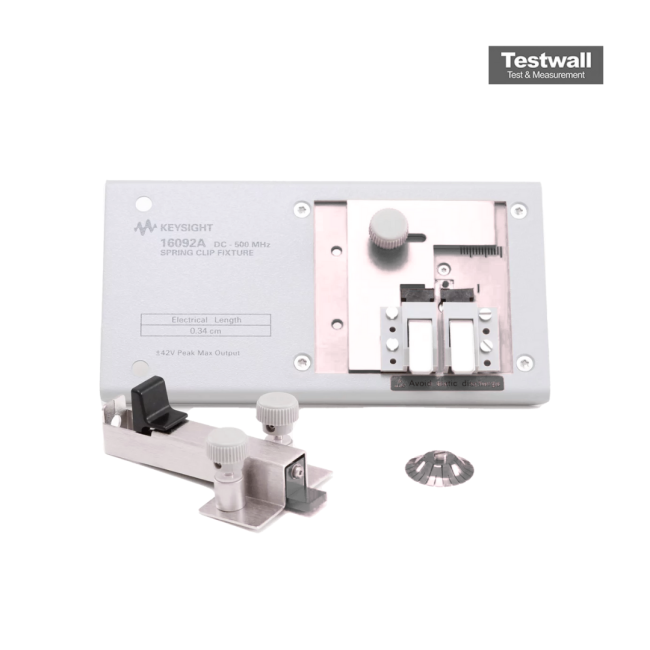

The Keysight 16092A (Agilent) Spring Clip Fixture supports impedance evaluation for both lead and SMD components. It includes two interchangeable modules mounted on a plate to handle different component types effectively.
Operating from DC to 500 MHz with a DC bias range of -40V to +40V, it functions at 0 to 55°C. The fixture features APC-7 terminal connections and parallel electrodes for SMDs and leads.
Testwall can supply the used Keysight 16092A (Agilent), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 16092A (Agilent).
