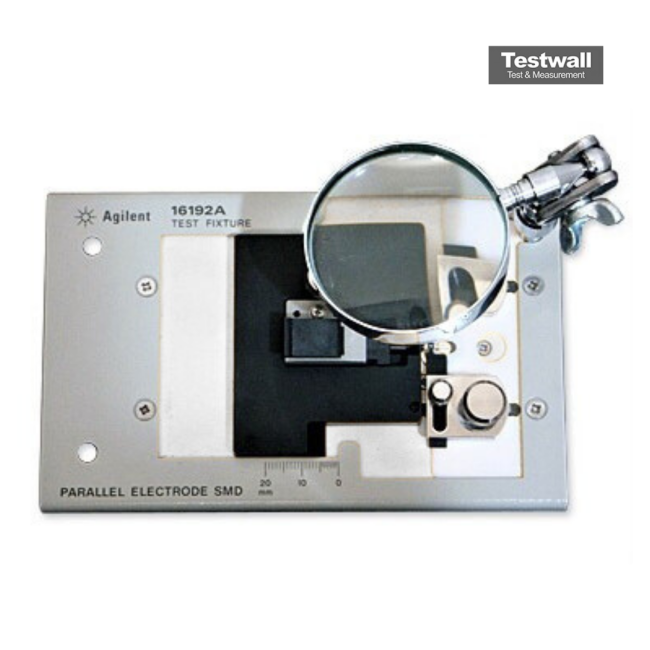

Keysight (Agilent) 16192A
Test Fixture, Parallel Electrode SMD
Keysight/Agilent 4294A Precision Impedance Analyzer Compatible Instruments
Parallel Electrode SMD Test Fixture Fixture Type
DC to 110 MHz Frequency Range
0.5 mm to 10 mm Component Size (Length)
0.5 mm to 5 mm Component Size (Width)
| Attribute | Value |
|---|---|
| Compatible Instruments | Keysight/Agilent 4294A Precision Impedance Analyzer |
| Fixture Type | Parallel Electrode SMD Test Fixture |
| Frequency Range | DC to 110 MHz |
| Component Size (Length) | 0.5 mm to 10 mm |
| Component Size (Width) | 0.5 mm to 5 mm |
| Electrode Gap | Adjustable to accommodate various SMD component sizes |
| Connector Type | 4-Terminal Pair (4TP) |
| Measurement Parameters | Impedance, Capacitance, Inductance, Resistance, Q Factor, D Factor |
| Operating Temperature | 0°C to 55°C |
| Component Type Supported | Surface Mount Devices (SMD) including chip capacitors, chip inductors, and chip resistors |
Keysight (Agilent) 16192A Options:
- 16192A - 010 - Add EIA/EIAJ industrial standard sized shorting bar set
- 16192A - 701 - Add general sized shorting bar set
- 16192A - 710 - Add the magnifying lens and tweezers
| Model | 16192A |
|---|
The Keysight (Agilent) 16192A Test Fixture is specifically engineered for precision impedance evaluations of side electrode SMD components. It accommodates components with a minimum size of 1 mm (length), ensuring accurate performance in testing small SMDs.
Ideal for component characterization and high-frequency testing, the 16192A provides stable and repeatable measurements for advanced electronic applications.
Testwall can supply the used Keysight (Agilent) 16192A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16192A.
