Keysight (Agilent)
Keysight (Agilent) 16334A
Test Fixture (Tweezer Contacts)
SMD Test Fixture Component Type
Keysight/Agilent LCR Meters and Impedance Analyzers Compatible Instruments
Surface Mount Devices (SMD) Components Measurement Target
1608 (1.6 mm x 0.8 mm) and larger SMD components Component Size
4-Terminal Pair (4TP) Connection Interface
| Attribute | Value |
|---|---|
| Component Type | SMD Test Fixture |
| Compatible Instruments | Keysight/Agilent LCR Meters and Impedance Analyzers |
| Measurement Target | Surface Mount Devices (SMD) Components |
| Component Size | 1608 (1.6 mm x 0.8 mm) and larger SMD components |
| Connection Interface | 4-Terminal Pair (4TP) |
| Frequency Range | Up to 1 GHz (depending on connected instrument) |
| Contact Method | Spring-loaded contact electrodes for reliable SMD contact |
| Open/Short Compensation | Supported for accurate measurement calibration |
| Connector Type | BNC connectors for instrument interface |
| Operating Temperature | 0°C to 55°C |
| Model | 16334A |
|---|

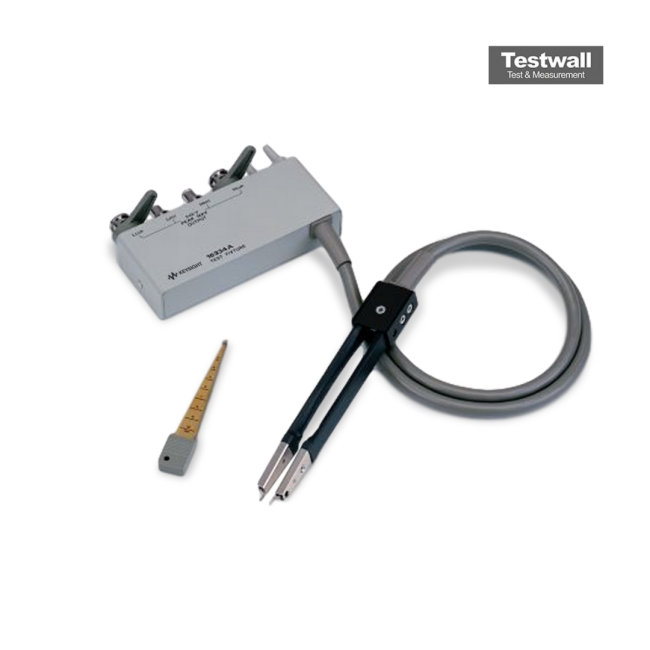

The Keysight (Agilent) 16334A is a specialized SMD component test fixture engineered for precise impedance evaluations. It supports SMD sizes as small as 1.6 x 0.8 mm, using tweezer-style contacts for secure and convenient DUT handling.
This fixture is ideal for high-frequency testing of surface-mounted devices with reliable clamping and stable connections during measurements.
Testwall can supply the used Keysight (Agilent) 16334A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16334A.
