Keysight (Agilent) 16440A
SMU / Pulse Generator Selector
SMU/Pulse Generator Selector Product Function
Keysight 4155/4156 Semiconductor Parameter Analyzers Compatible Instruments
2 Channels Number of Channels
200V Maximum Voltage
1A Maximum Current
| Attribute | Value |
|---|---|
| Product Function | SMU/Pulse Generator Selector |
| Compatible Instruments | Keysight 4155/4156 Semiconductor Parameter Analyzers |
| Number of Channels | 2 Channels |
| Maximum Voltage | 200V |
| Maximum Current | 1A |
| Switching Function | Selects between SMU and Pulse Generator Unit (PGU) outputs |
| Connector Type | Triaxial Connectors |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Power Supply | Powered via interface connection from the compatible parameter analyzer |
Keysight (Agilent) 16440A Options:
- 16440A - 001 - 1.5 m control cable (HP part number 04155-61612) and 40 cm triaxial cable (HP part number 04155-61605)
- 16440A - 002 - 3.0 m control cable (HP part number 04155-61611) and 40 cm triaxial cable (HP part number 04155-61605)
- 16440A - 003 - 40 cm control cable (HP part number 04155-61608) for connecting selector to selector expander, and 40 cm triaxial cable (HP part number 04155-61605)
| Model | 16440A |
|---|
AGILENT KEYSIGHT 16440A

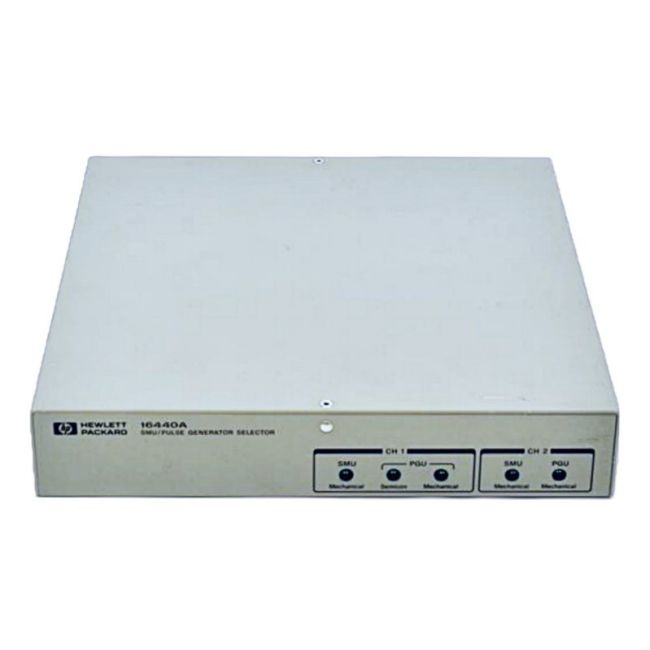

The Keysight (Agilent) 16440A is a SMU / Pulse Generator Selector, for use with the 4155A, 4155B, 4155C, 4156A, 4156B, 4156C and B1500A Semiconductor Parameter Analyzers.
