Keysight (Agilent) 16864A
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Sample Rate | 2 GSa/s |
| Maximum Timing Resolution | 500 ps |
| Memory Depth | 2 Mb per Channel |
| Threshold Accuracy | ±(100 mV + 3% of threshold setting) |
| Input Voltage Range | -6 V to +6 V |
| Minimum Detectable Pulse Width | 1.5 ns |
| Compatible Platform | Keysight 16800 Series Logic Analyzers |
| Input Impedance | 100 kΩ ± 2% with 8 pF |
| Form Factor | Single-Slot Module Card |
| Model | 16864A |
|---|

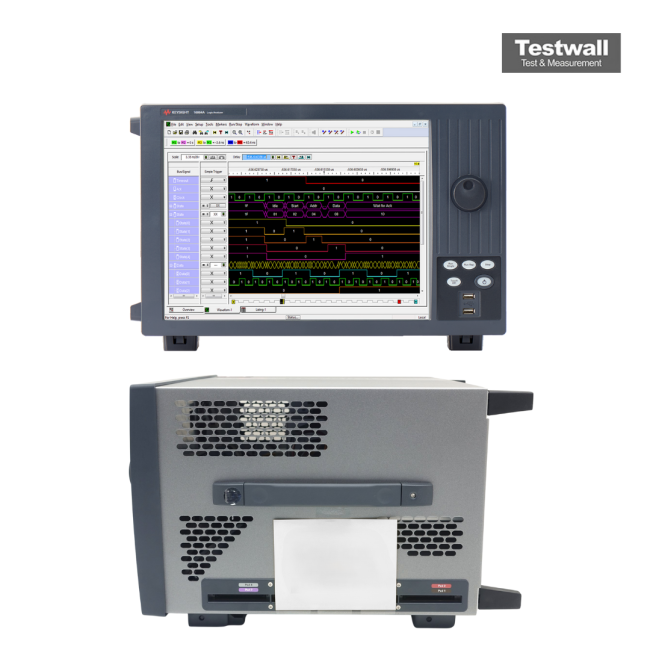

The Keysight (Agilent) 16864A is a 136-channel portable logic analyzer offering state speeds up to 700 MHz, timing speeds up to 5 GHz (12.5 GHz with timing zoom), and memory depth up to 128M. It supports asynchronous sampling up to 2.5 GHz (5 GHz in half-channel mode), state clock rates to 700 MHz, and data rates up to 1.4 Gb/s. Featuring a 15-inch touchscreen, built-in SSD, USB 3.0, and LAN interfaces, it delivers powerful debug capability in a compact unit.
Ideal for high-speed digital design, it captures detailed eye diagrams on all channels and allows deep analysis with up to 256 Mb half-channel memory depth and 80 ps timing zoom resolution.
Testwall can supply the used Keysight (Agilent) 16864A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16864A.
