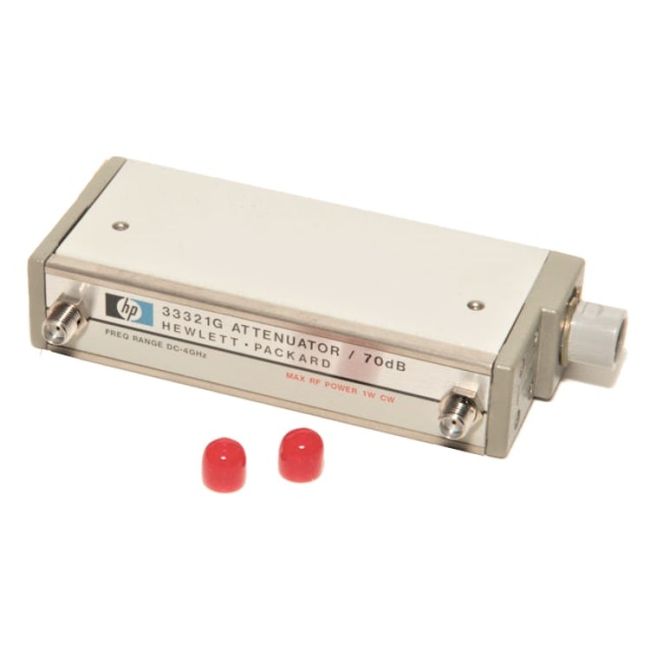

Keysight (Agilent) 33321G
| Attribute | Value |
|---|---|
| Frequency Range | DC to 4 GHz |
| Insertion Loss | 0.9 dB maximum at 4 GHz |
| Attenuation | 0 to 11 dB in 1 dB steps |
| Power Handling | 1 W average, 1 W peak |
| Impedance | 50 Ohm |
| VSWR | 1.35:1 maximum |
| Switching Speed | Less than 1 ms |
| Control Voltage | +5V TTL/CMOS compatible |
| Connector Type | SMA (female) |
| Operating Temperature | 0°C to +55°C |
Keysight (Agilent) 33321G Options:
- 33321G - 008 - 8 inch (20.3 cm) ribbon cable with 14 pin flat pack male connector
- 33321G - 016 - 16 inch (40.6 cm) ribbon cable with 14 pin flat pack male connector
- 33321G - 011 - 5 volt solenoid operation
- 33321G - 890 - Calibration data: 18 GHz models: 90 frequencies
| Model | 33321G |
|---|
The HP Agilent 33321G Attenuator, dc to 4 GHz programmable step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
Features and specifications of the Agilent 33321G Attenuator include:
Superior RF Performance
- Frequency range: dc to 4 GHz
- Insertion loss at 0 dB: 0.4 dB + 0.07 dB/GHz
- Maximum SWR: 1.35
Repeatability and Life Span
- Repeatability life: 0.03 dB maximum
- 5 million cycles per section
Power Handling
- Maximum RF input power: 1 W (average), 100 W (peak)
Features
- Connector type: choice of type-N female, SMA female, APC-7
- Programming connector: 12-pin Viking, optional 14-pin DIP
