Keysight (Agilent) 34924A
| Attribute | Value |
|---|---|
| Module Type | 40-Channel Single-Ended Multiplexer |
| Number of Channels | 40 single-ended channels (or 20 differential channels) |
| Compatible Mainframe | Keysight 34980A Multifunction Switch/Measure Mainframe |
| Maximum Voltage | 300 V CAT I (DC or AC peak) |
| Maximum Current | 1 A per channel |
| Contact Resistance | Less than 1 Ohm |
| Relay Type | Reed relays |
| Bandwidth | Up to 10 MHz |
| Relay Lifetime | Over 100 million operations (typical) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) 34924A Options:
- 34946A - 001 - Module ordered without switches installed (for installing own N1810 series switches or controlling N1810 Series switches outside the mainframe)
- 34947A - 001 - Module ordered without switches installed (for installing own N1810 series switches or controlling N1810 Series switches outside the mainframe)
- N1810 - 124 - Coil Voltage option: 24 VDC coil
- N1810 - 201 - DC Connector option: D subminiature 9 pin female
- N1810 - 402 - Drive option: Position indicators
| Model | 34924A |
|---|

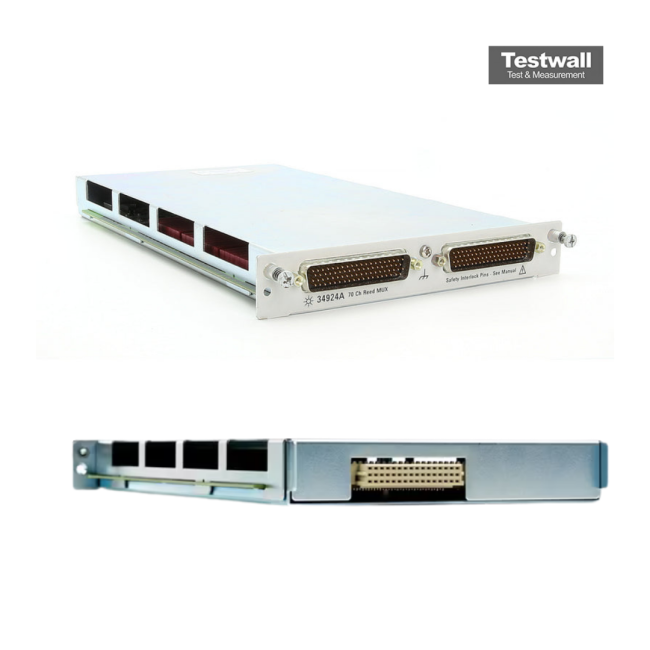

Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer
The Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer is a high-density, high-speed plug-in module for the 34980A Multifunction Switch/Measure Unit. It provides access to 70 channels, allowing you to switch between a large number of test points without manually reconfiguring the wiring. Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer uses reed relays to achieve scan rates up to 500 channels-per-second, making it suitable for high-throughput automated testing applications where speed is critical. It supports bandwidth up to 25 MHz, enabling it to handle high frequency signals.
The Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer supports connections for both 2-wire and 4-wire configurations within the same module, offering flexibility for various testing setups. It can handle voltages up to ± 150 V peak and cur up to 0.5A, making it suitable for a wide range of applications. The 34924A utilizes standard 78-pin Dsub connectors for compatibility with standard cables, terminal blocks, or mass interconnect solutions. Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer supports is a valuable tool for engineers and technicians who perform automated test applications, data logging, or high-speed monitoring tasks that require switching between multiple test points.
Specifications for the Keysight (Agilent) 34924A 70 Ch. Reed Multiplexer Include:
| Channels/configurations | 70 2-wire / 35 4-wire |
| Max volts | ± 150 V peak |
| Max current | 0.5A /1.5A |
| Bandwidth | 25 MHz |
