Keysight (Agilent) 34938A
| Attribute | Value |
|---|---|
| Compatible Mainframe | Keysight 34980A Multifunction Switch/Measure Unit |
| Module Type | 20-Channel Armature Multiplexer |
| Number of Channels | 20 Channels (2-wire) / 10 Channels (4-wire) |
| Maximum Voltage | 300 V CAT I (AC/DC) |
| Maximum Current | 1 A per channel |
| Contact Resistance | Less than 1 Ohm |
| Switching Speed | Up to 60 channels per second |
| Operating Temperature | 0°C to 55°C |
| Relay Type | Armature Relays (Reed-free) |
| Connector Type | Screw Terminal Connector Block |
| Model | 34938A |
|---|

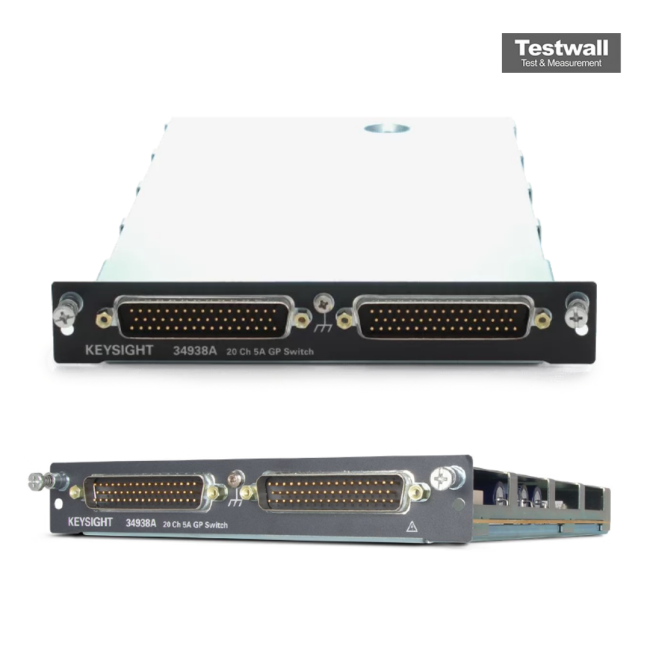

The Keysight (Agilent) 34938A is a 20-channel, SPST Form A switch module designed for the 34980A platform, supporting up to 5A and 150W per channel. It features armature latching relays with a built-in relay counter and thermal protection via a temperature sensor. Standard 50-pin Dsub connectors ensure versatile interfacing.
This module is ideal for controlling power to external devices like solenoids and relays or cycling power during testing. It allows for simultaneous channel switching and high-current applications.
Testwall can supply the used Keysight (Agilent) 34938A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34938A.
