Keysight (Agilent) 34970A
| Attribute | Value |
|---|---|
| Number of Slots | 3 module slots |
| Measurement Functions | DC/AC voltage, DC/AC current, 2/4-wire resistance, frequency, period, temperature, diode test |
| Maximum Voltage Input | 300 V (channel-to-earth) |
| DMM Resolution | 6½ digits (22-bit) |
| Scanning Speed | Up to 250 channels per second |
| Memory | 50,000 reading storage with time and channel stamps |
| Interface | RS-232 and GPIB (IEEE-488) standard interfaces |
| Power Requirements | 100–240 VAC, 50/60/400 Hz, 150 VA maximum |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Dimensions (W x H x D) | 425.5 mm x 88.5 mm x 348.3 mm (2U half-rack) |
Keysight (Agilent) 34970A Options:
- 34970A - 001 - Delete Internal DMM (Order 34970-80010 to retrofit DMM at a later time)
- 34970A - A6J - ANSI Z540 compliant calibration
- 34970A - 0B0 - Delete manual set
- 34970A - AB0 - Taiwan: Chinese manual
- 34970A - AB1 - Korea: Korean manual
- 34970A - AB2 - China: Chinese manual
- 34970A - ABA - English: English manual
- 34970A - ABD - Germany: German manual
- 34970A - ABE - Spain: Spanish manual
- 34970A - ABF - France: French manual
- 34970A - ABJ - Japan: Japanese manual
- 34970A - ABZ - Italy: Italian manual
| Model | 34970A |
|---|

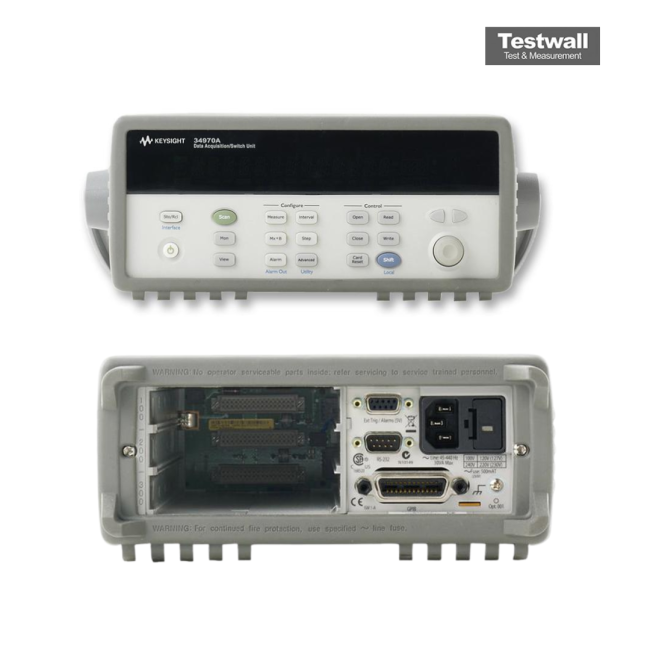

The Keysight (Agilent) 34970A Switch Unit features a 3-slot mainframe and a 6½-digit internal DMM, supporting up to 250 channels/sec. It allows independent channel configuration across 11 measurement functions, including thermocouples, RTDs, and voltage/current inputs.
Users can choose from 8 plug-in modules to create a versatile data logger, low-cost switch unit, or full-featured acquisition system. Built-in signal conditioning and screw-terminal connections make setup easy and reliable.
Testwall can supply the used Keysight (Agilent) 34970A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34970A.
