Keysight (Agilent)

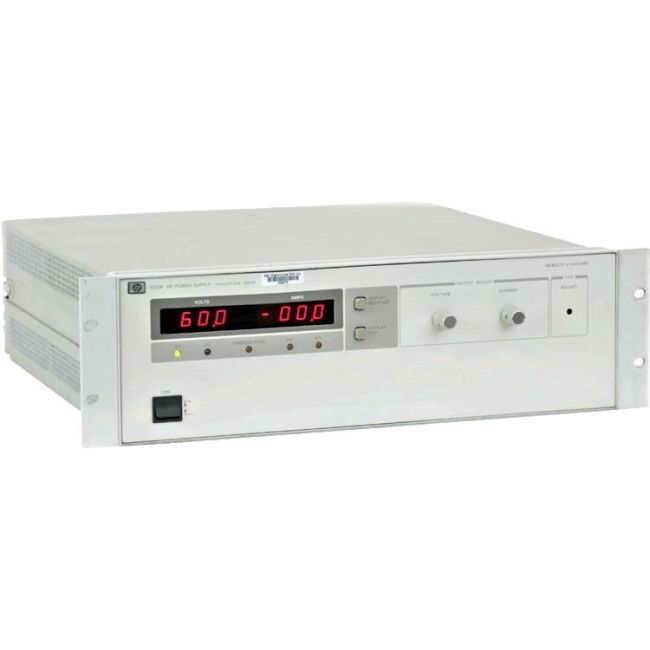

Keysight (Agilent) 6012B
Power Supply, 60V, 50A, 1200W
0 – 60 V Output Voltage Range
0 – 50 A Output Current Range
1000 W Maximum Output Power
±(0.05% + 10 mV) Output Voltage Programming Accuracy
±(0.2% + 250 mA) Output Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 60 V |
| Output Current Range | 0 – 50 A |
| Maximum Output Power | 1000 W |
| Output Voltage Programming Accuracy | ±(0.05% + 10 mV) |
| Output Current Programming Accuracy | ±(0.2% + 250 mA) |
| Load Regulation (Voltage) | ≤ 4 mV |
| Line Regulation (Voltage) | ≤ 2 mV |
| Input Voltage | 208/220/230/240 VAC, Single Phase, 47–63 Hz |
| Interface / Programming | GPIB (IEEE-488) |
| Operating Temperature | 0 °C to 55 °C |
Keysight (Agilent) 6012B Options:
- 6012B - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6012B - Opt 220 - 191 to 233 Vac, 48 to 63 Hz
- 6012B - Opt 240 - 209 to 250 Vac, 48 to 63 Hz
- 6012B - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6012B - Opt 909 - Rack-mount Kit with Handles (p/n 5062-3983)
- 6012B - Opt 0L1 - Full documentation on CD-ROM, and printed standard documentation package
- 6012B - Opt 0L2 - Extra copy of standard printed documentation package
- 6012B - Opt 0B0 - Full documentation on CD-ROM only
- 6012B - Opt J01 - Stabilization for loads up to 10 Henries
| Model | 6012B |
|---|
AGILENT 6012B
Agilent 6012B is part of the 601x series of autoranging power supplies which provide maximum power over a wide range of voltage and cur combinations without having to manually select the proper output range.
Features and specifications of the HP 6012B include:
- Voltage: 0 to 60 Vdc
- Current: 0 to 50 A
- Ripple & noise (voltage/rms peak-peak/cur rms): 8 mV/50 mV/120 mA
- Load regulation: 0.01% +5 mV; 0.01% +15 mA
- Autoranging outputs provide maximum power at a variety of operating points
- Overvoltage features protect DUTs quickly and automatically
- Auto-parallel or auto-series connections enable greater output flexibility
- Ten-turn pots for precise local control
