Keysight (Agilent)
Keysight (Agilent) 6050A
Electronic Load Mainframe
60 V Maximum Voltage
120 A Maximum Current
1800 W Maximum Power
85–265 VAC, 47–63 Hz Input Voltage Range
Constant Current (CC), Constant Voltage (CV), Constant Power (CW), Constant Resistance (CR) Operating Mode
| Attribute | Value |
|---|---|
| Maximum Voltage | 60 V |
| Maximum Current | 120 A |
| Maximum Power | 1800 W |
| Input Voltage Range | 85–265 VAC, 47–63 Hz |
| Operating Mode | Constant Current (CC), Constant Voltage (CV), Constant Power (CW), Constant Resistance (CR) |
| Minimum Voltage for CC Operation | 3 V |
| Voltage Measurement Accuracy | 0.04% + 0.04% FS |
| Current Measurement Accuracy | 0.1% + 0.1% FS |
| Interface | GPIB (IEEE-488) |
| Form Factor | Mainframe module for Agilent 6050A Electronic Load Mainframe (requires mainframe) |
Keysight (Agilent) 6050A Electronic Load Mainframe Options:
- 6050A - 020 - Front Panel Inputs
- 6050A - 100 - 87 To 106 Vac, 47 - 66HZ Input
- 6050A - 220 - 191 To 233, 47 - 66HZ Input
| Model | 6050A |
|---|

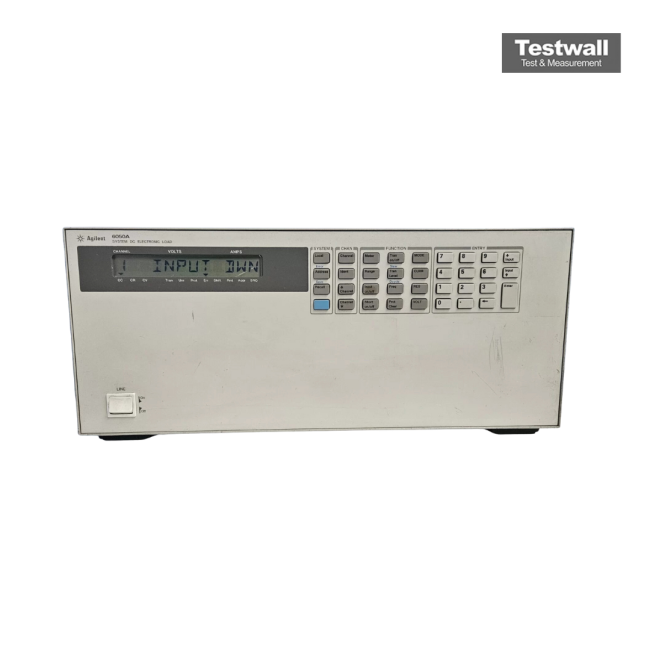

The Keysight (Agilent) 6050A is an 1800 Watt Electronic Load Mainframe designed for testing, evaluation, and burn-in of DC power supplies and components. It supports six user-installable slots and includes HP-IB integration for centralized control.
Ideal for R&D, production, and field repair, it maintains compatibility with HP-SL standards and previous modules like the 6060A, offering seamless reconfiguration and programming interchangeability.
Testwall can supply the used Keysight (Agilent) 6050A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6050A.
