Keysight (Agilent)

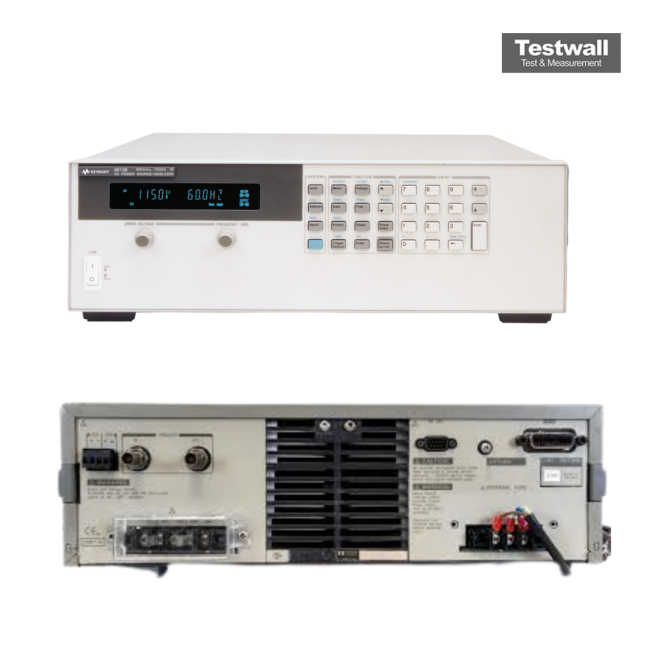

Keysight (Agilent) 6812A
AC Power Source/Analyser
0 to 300 VAC Output Voltage Range
2 A RMS Maximum Output Current
375 VA Maximum Output Power
45 Hz to 1000 Hz Frequency Range
±0.1% + 0.2 V Output Voltage Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 VAC |
| Maximum Output Current | 2 A RMS |
| Maximum Output Power | 375 VA |
| Frequency Range | 45 Hz to 1000 Hz |
| Output Voltage Accuracy | ±0.1% + 0.2 V |
| Output Frequency Accuracy | ±0.01% |
| Total Harmonic Distortion (THD) | Less than 0.25% (at full load, 50/60 Hz) |
| Input Voltage | 115/230 VAC, 47–63 Hz |
| Programming Interface | GPIB (IEEE-488) and RS-232 |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 6812A AC Power Source/Analyser Options:
- 6812A - 100 - 87 To 106 Vac, 48 To 63 HZ
- 6812A - 200 - 174 To 220 Vac, 47 To 63 HZ.
- 6812A - 230 - 191 To 254 Vac, 48 To 63 HZ
- 6812A - 831 - 12 Awg, 200 To 240 Vac
- 6812A - 833 - 1.5 Mm2 Wire Size, 200 To 240 Vac,
- 6812A - 834 - 10 Awg, 100 To 120 Vac
| Model | 6812A |
|---|
The Keysight (Agilent) 6812A AC Power Source/Analyser delivers precise AC and DC power with low noise switching topology and user-defined waveform output, ideal for testing power supplies, avionics ATE, and regulatory compliance.
Its advanced transient generation, waveform digitization, and harmonic analysis make it versatile for testing under AC line distortion or harmonic immunity standards.
Testwall can supply the used Keysight (Agilent) 6812A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6812A.
