Keysight (Agilent) 6813C
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 VAC / 0 to 425 VDC |
| Output Current Range | 0 to 13.3 A RMS / 0 to 18.8 A Peak |
| Output Power | 4000 VA / 4000 W |
| Frequency Range | DC, 16 Hz to 850 Hz |
| Output Voltage Accuracy | ±0.1% + 0.1 V |
| Total Harmonic Distortion (THD) | Less than 0.25% (at full resistive load) |
| Input Voltage | 208 VAC / 220 VAC (Single Phase) |
| Programming Interface | GPIB (IEEE-488), RS-232 |
| Output Impedance | Less than 5 mΩ (DC), Less than 10 mΩ (at 60 Hz) |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 6813C Options:
- 6813C - 019 - Output raised to 2000VA, frequency reduced to 100Hz (6813C only)
- 6813C - 020 - Dual power analyzer Option
- 6813C - 026 - 26 Volt, 0.1 A auxiliary 45 to 100 Hz only, reference output
- 6813C - 200 - 174-220 VAC (200 VAC nominal), 47-63 Hz, Japan only
- 6813C - 230 - 191 to 254 VAC (230 VAC nominal), 24-63 Hz
- 6813C - 831 - 12 AWG, 200 to 240 VAC, unterminated
- 6813C - 832 - 4 mm2 wire size, unterminated
- 6813C - 842 - Line cord with IEC 309; 32 A, 220 V plug
- 6813C - 844 - Line cord with NEMA L6-30P; 30 A, 250 V locking plug
| Model | 6813C |
|---|

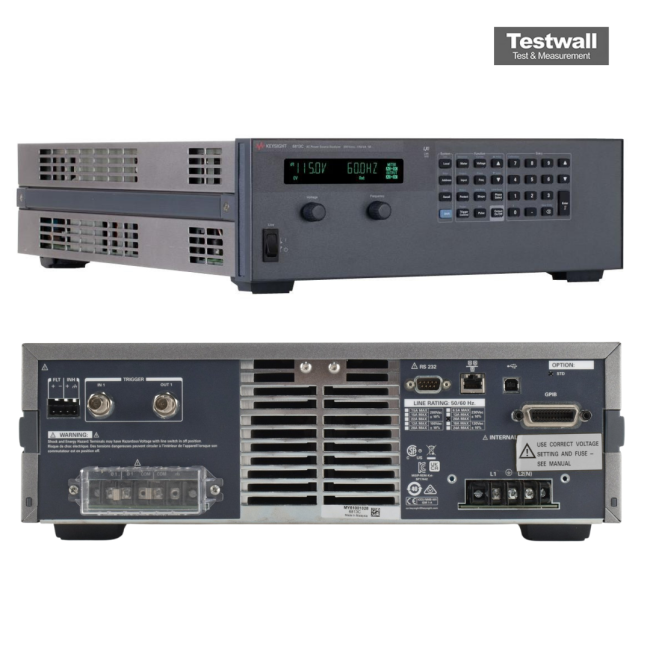

Keysight (Agilent) 6813C Performance AC Power Source
Keysight Technologies 6813C AC power source/analyzers provide a complete AC test solution. As AC sources, they combine the capabilities of a power amplifier and an arbitrary waveform generator. This allows you to simulate normal waveforms and many types of distorted power waveforms. The built in power analyzer combines the capabilities of a multimeter, oscilloscope, harmonic analyzer and power analyzer. These instruments may also be used to produce DC power, either alone or as a DC offset to an AC waveform. There are many standard preprogrammed waveforms, or you can use the transient generation system to simulate sophisticated and repeatable AC line disturbances. DC power can also be generated, either as a DC offset or as a pure DC signal.
The powerful built-in power analyzer in Keysight 6813C AC power source/analyzers provides everything that you need to make AC measurements at the AC input to your DUT. Option 020 provides an additional power analyzer, complete with a precision cur shunt. This second analyzer can even be used for tests where the AC power source/analyzer is not providing power, thus expanding the usefulness of this instrument to many more test configurations. In addition to overcurrent, overvoltage, overpower and overtemperature protection, the 6813C offers output disconnect relays and remote inhibit capability (quickly disabling the output of the AC power source/analyzers via a TTL signal) to protect the device under test.
Specifications for the Keysight (Agilent) 6813C Performance AC Power Source Include:
| Voltage | 300V |
| Current | 13A |
| Total Power | 1750VA |
| Frequency Range | DC; 45 Hz to 1 kHz |
