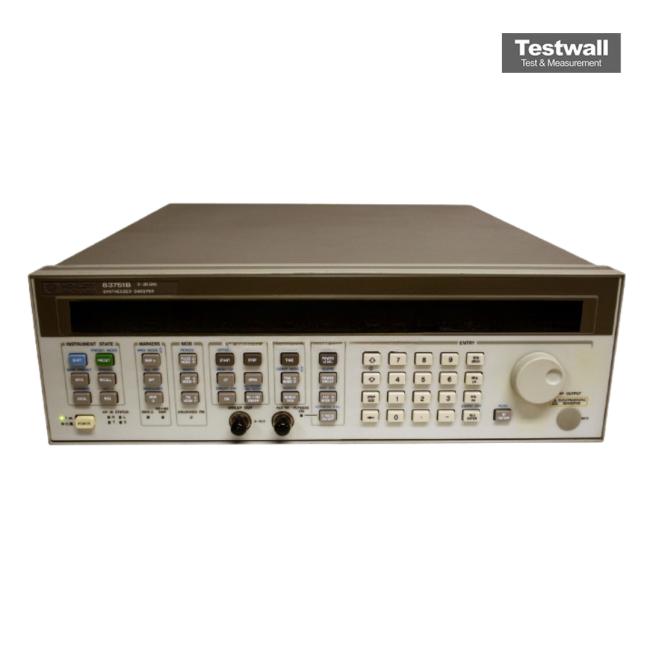

Keysight (Agilent) 83751B
| Attribute | Value |
|---|---|
| Frequency Range | 2 to 20 GHz |
| Level Accuracy | ±1.5 dB at > -75 dBm |
| Harmonics | -20 dBc |
| Non-Harmonics | -50 dBc at > 500 kHz offset |
| Switching Speed | 70 ms (max.), CW |
| Output Power | -10 dBm to +17 dBm |
| SSB Phase Noise | -75 dBc/Hz at 10 GHz, 10 kHz offset (typ.) |
| Modulation | external AM (22 dB depth), external FM (±75 MHz at DC to 100 Hz) |
| Sweep Modes | ramp sweep, step sweep (2 to 1601 points), power sweep (25 dB) |
| Timebase Aging | 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 3.5 mm |
| Interfaces | GPIB |
| Dimensions | 425 × 133 × 483 mm |
| Weight | 16 kg |
Keysight (Agilent) 83751B 2-20GHz High Power Synthesised Sweeper Options:
- 83751B - 1E1 - 70Db Step Attenuator
- 83751B - 1E4 - Rear Panel Rf Output
- 83751B - 1E5 - High Stab Timebase
- 83751B - 1ED - N Type Rf Output Connector
- 83751B - 1EE - Source Module Interconnect And Cable
The Keysight (Agilent) 83751B High Power Synthesised Sweeper offers a frequency range from 2 GHz to 20 GHz, delivering superior accuracy, stability, and analog-speed operation. It features fully synthesized CW, stepped, and ramp sweep modes suitable for broadband and narrowband applications. This makes it highly effective for benchtop, scalar, and swept testing environments.
Ideal for precise component testing, the 83751B enhances measurement quality with reliable performance and synthesized control across various frequencies and test setups.
Testwall can supply the used Keysight (Agilent) 83751B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83751B.
Options and configurations
- Output Power: -10 dBm (-80 dBm with Opt. 1E1) to +17 dBm
- RF Output Connector: 3.5 mm (Type-N with Opt. 1ED)
