Keysight (Agilent) 8510C
| Attribute | Value |
|---|---|
| Frequency Range | 45 MHz to 110 GHz (with appropriate test sets) |
| Dynamic Range | Up to 110 dB |
| Measurement Parameters | Full 2-port S-parameters (S11, S21, S12, S22) |
| Trace Noise | 0.005 dB RMS at 10 Hz IF bandwidth |
| System Interface | HP-IB (GPIB) programmable interface |
| Display | Rectangular, polar, Smith chart, and inverse Smith chart formats |
| Data Points per Sweep | Up to 1601 points |
| IF Bandwidth | 1 Hz to 4 kHz selectable |
| Calibration Methods | Full 2-port, 1-port, response, and TRL/LRM calibration supported |
| Power Output Range | -15 dBm to +10 dBm (source dependent on test set configuration) |
Keysight (Agilent) 8510C Options:
- 8510C - 010 - Time Domain option (inverse Fourier transform of frequency domain response)
- 8510C - 008 - Pulse profile domain option
- 8510C - 002 - Calibration standard definitions on magnetic tape (for use with 8510A/B)
| Model | 8510C |
|---|

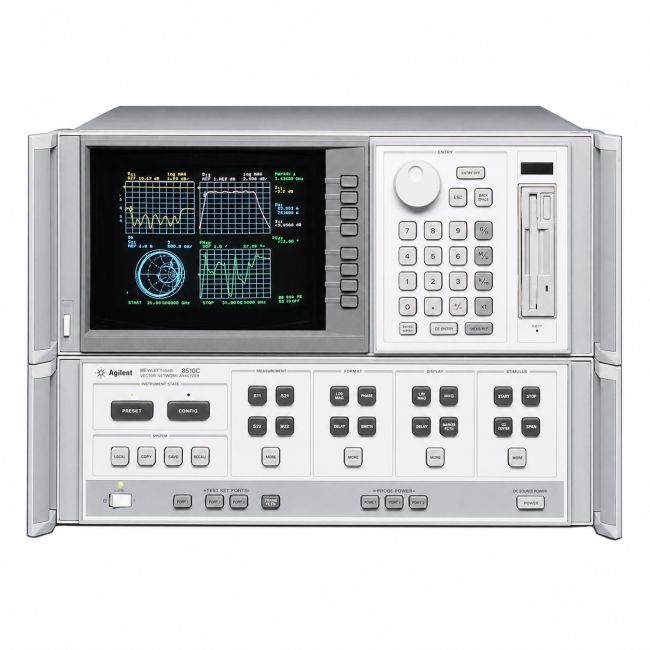

The Keysight (Agilent) 8510C Vector Network Analyzer provides broadband measurements from 45 MHz to 50 GHz in 2.4 mm coax, up to 65 GHz in 1.85 mm coax, and 110 GHz in waveguide bands. It measures magnitude, phase, and group delay, and optionally offers time domain analysis using inverse Fourier transform.
This analyzer features Thru-Reflect-Line calibration, adapter removal, four S-parameter display, internal data storage, and real-time error correction. It delivers high accuracy with 60 dB directivity and dynamic range of 80 to 100 dBm.
Testwall can supply the used Keysight (Agilent) 8510C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8510C.
