Keysight (Agilent) 85564A
| Attribute | Value |
|---|---|
| Frequency Range | 26.5 GHz to 40 GHz |
| Instrument Type | Microwave Spectrum Analyzer Plug-In Module |
| Compatible Platform | HP/Agilent 856XX Series Spectrum Analyzers |
| Connector Type | 2.4 mm (Female) |
| Input VSWR | 2.5:1 typical |
| Displayed Average Noise Level (DANL) | -90 dBm typical at 26.5 GHz |
| Resolution Bandwidth Range | 1 Hz to 3 MHz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Maximum Safe Input Level | +30 dBm (1 Watt) |
| Form Factor | External Mixing Down-Converter Module |
| Model | 85564A |
|---|

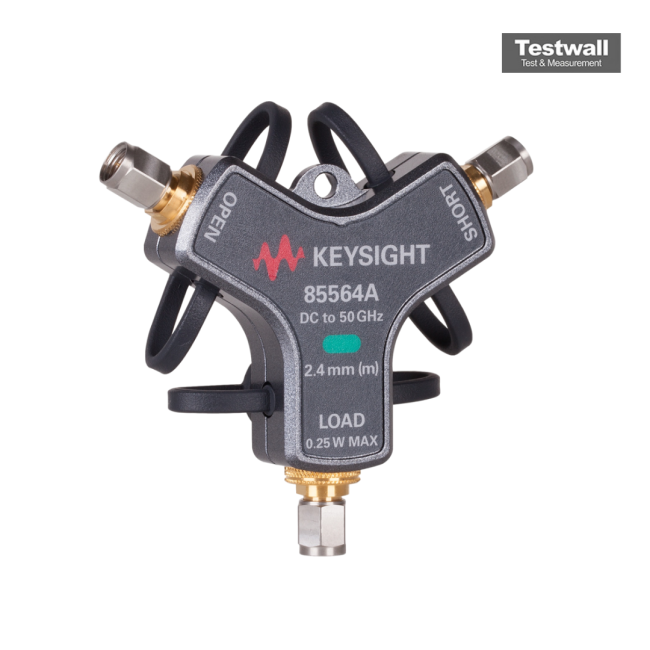

The Keysight (Agilent) 85564A is a 3-in-1 calibration kit combining open, short, and load standards, designed for precision testing across DC to 50 GHz. Equipped with 2.4 mm male connectors, it ensures accurate vector network analyzer (VNA) calibrations in high-frequency applications. This compact solution minimizes connector wear and maximizes reliability in RF and microwave measurements.
Ideal for field and lab use, the 85564A supports fast, repeatable calibrations, optimizing test setups for broadband components and high-speed digital systems.
Testwall can supply the used Keysight (Agilent) 85564A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85564A.
