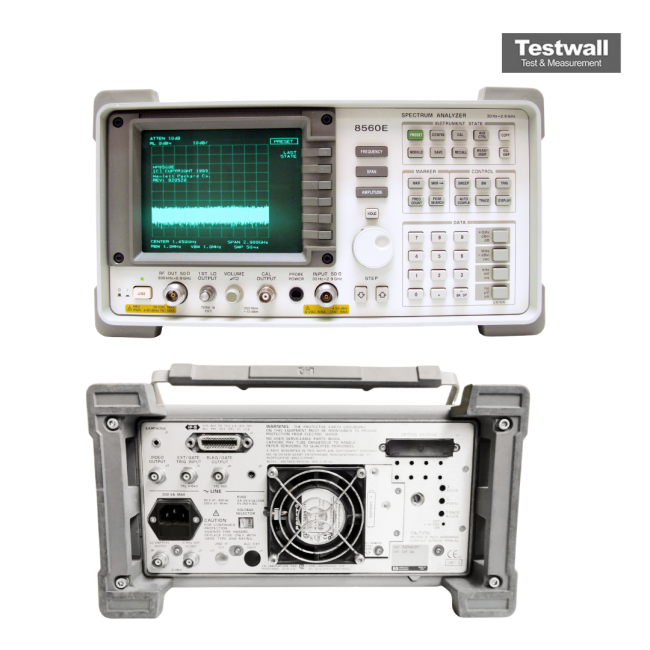

Keysight (Agilent) 8560E
| Attribute | Value |
|---|---|
| Frequency Range | 30 Hz to 2.9 GHz |
| Resolution Bandwidth | 1 Hz to 2 MHz in 1-3-10 steps |
| Display Average Noise Level | -115 dBm (typical) at 1 kHz RBW |
| Phase Noise | -95 dBc/Hz at 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Dynamic Range | 70 dB (typical) |
| Input Impedance | 50 Ohms |
| Video Bandwidth | 1 Hz to 2 MHz |
| Sweep Time | 50 ms to 100 s (span > 0 Hz) |
| Display | 8.4-inch color LCD, 600 x 480 resolution |
Keysight (Agilent) 8560E 30Hz-2.9GHz Synthesised Spectrum Analyser Options:
- 8560E - 001 - Second If Output; Rear Panel Connector
- 8560E - 002 - Tracking Generator (8560E)
- 8560E - 005 - Add Alternate Sweep Output
- 8560E - 006 - Down To 30HZ Frequency Extension (8563/4/5E)
- 8560E - 007 - Digitised Fast Sweeps
- 8560E - 008 - Add Signal Identification
- 8560E - 026 - Apc 3.5 Input Connector (8563E)
- 8560E - 042 - Protective Carry Case/Backpack
- 8560E - 103 - Delete Precision Frequency Reference, 1HZ And 3HZ Rbw
- 8560E - 104 - Delete 85620A Mass Memory Module
- 8560E - 908 - Rackmount Kit Without Handles
- 8560E - 909 - Rackmount Kit With Handles And Flanges
- 8560E - B70 - Benchlink Spectrum Analyzer S/W
- 8560E - E35 - Acpr Test Set
- 8560E - H35 - Firmware Upgrade For E35
- 8560E - J67 - Bundle Options Uk6,006 & 007
- 8560E - K35 - System With Cdma Test Set Attached
| Model | 8560E |
|---|
The Keysight (Agilent) 8560E Synthesised Spectrum Analyser offers a 30Hz to 2.9GHz frequency range with -151dBm noise floor, 1Hz to 2MHz RBW, and precision 1Hz counter resolution. It features low phase noise, a dynamic range over 100dB, time-gated analysis, and a narrow 5:1 shape factor. Its MIL-rugged design ensures reliable operation in harsh environments. It includes digital bandwidths, a 1Hz frequency counter, and an amplitude correction system to enhance accuracy and performance.
This analyzer is ideal for adjacent channel power (ACP) measurements in GSM, DECT, TDMA, and W-CDMA systems. It supports fast spurious response tests and efficient signal capture via HP BenchLink PC software.
Testwall can supply the used Keysight (Agilent) 8560E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8560E.
