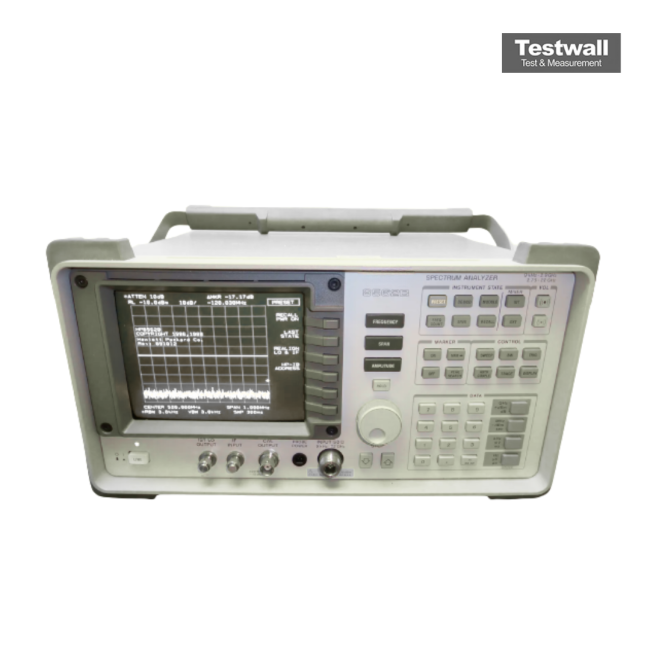

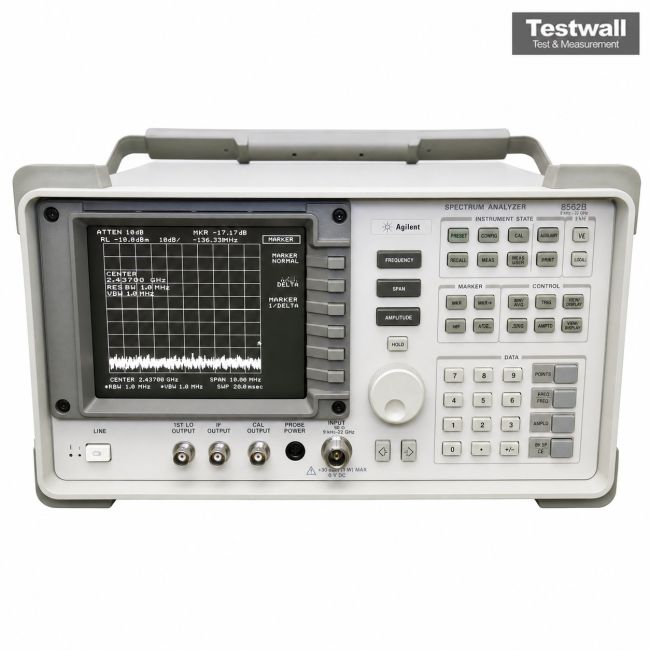

Keysight (Agilent) 8562B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 22 GHz |
| Frequency Resolution | 1 Hz |
| Displayed Average Noise Level | -145 dBm (typical) at 1 Hz RBW |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (typical) |
| Resolution Bandwidth Range | 10 Hz to 3 MHz (-3 dB), plus 200 Hz to 3 MHz (6 dB EMI bandwidths) |
| Amplitude Measurement Range | -145 dBm to +30 dBm |
| Input Impedance | 50 Ohm |
| Display | High-resolution CRT display, 600 x 455 pixels |
| Input Connector | Type-N (female), 50 Ohm |
| Interface/Connectivity | GPIB (IEEE-488.2) standard interface |
Keysight (Agilent) 8562B Options:
- 8562B - Option 001 - Second IF Output
- 8562B - Option 909 - Rackmount Kit with handles and flanges
- 8562B - Option 910 - Extra Manual Set
- 8562B - Option 915 - Technical Reference Manual
- 8562B - Option 916 - Extra Pocket Operating Guide (English)
- 8562B - Option K08 - Soft Carrying Case
- 8562B - Option W30 - 2 additional years Return-to-HP Service
- 8562B - HP 85620A - Mass Memory Module
- 8562B - HP 85629B - Test and Adjustment Module
- 8562B - HP 85700A - 32 K Byte RAM Memory Card
- 8562B - HP 85710A - Digital Radio Personality
- 8562B - HP 85901A - Portable AC Power Source
| Model | 8562B |
|---|
The Keysight (Agilent) 8562B is a high-performance 22GHz Spectrum Analyser, designed for wideband signal analysis with precise frequency and amplitude measurements. It features a frequency range from 9kHz to 22GHz, with a dynamic range and low noise floor suitable for complex RF signal environments.
Ideal for R&D and production testing, it supports high-accuracy applications requiring fast sweeps and narrow resolution bandwidths. Efficient performance makes it suitable for advanced telecommunications and defense testing.
Testwall can supply the used Keysight (Agilent) 8562B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8562B.
