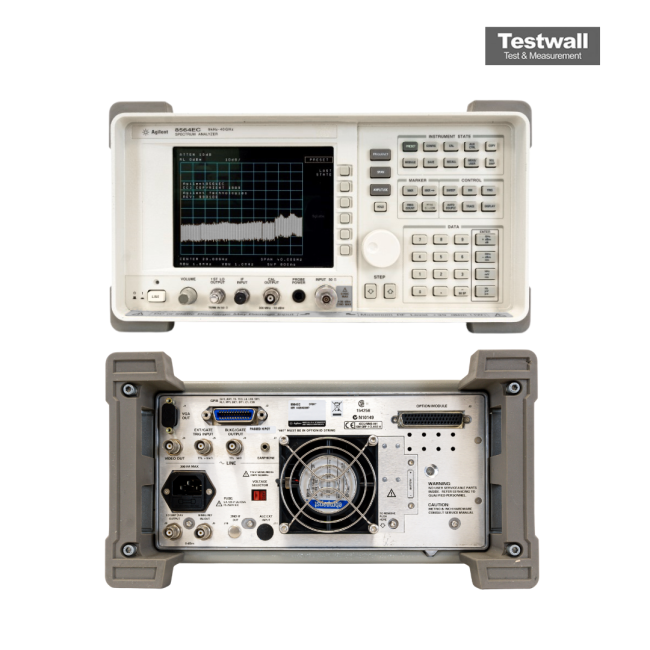

Keysight (Agilent) 8564EC
Spectrum Analyser, 9 kHz - 40 GHz
9 kHz to 40 GHz Frequency Range
-147 dBm (1 GHz, 10 Hz RBW) Displayed Average Noise Level (DANL)
1 Hz Frequency Resolution
-95 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
78 dB (third-order intermodulation) Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 40 GHz |
| Displayed Average Noise Level (DANL) | -147 dBm (1 GHz, 10 Hz RBW) |
| Frequency Resolution | 1 Hz |
| Phase Noise | -95 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Dynamic Range | 78 dB (third-order intermodulation) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (-3 dB), 5 MHz (-6 dB) |
| Input Impedance | 50 Ohms |
| Maximum Safe Input Level | +30 dBm (1 W) RF power |
| Amplitude Accuracy | ±0.5 dB |
| Display | 8.4-inch color CRT, 600 x 480 resolution |
Keysight (Agilent) 8564EC Options:
- 8564EC - H35 - Firmware upgrade in order for a new 8564EC to work with the 8563E-K35 W-CDMA ACPR test set
- 8564U - H35 - Service Center installable retrofit firmware upgrade in order for an existing 8564EC to work with the 8563E-K35 test set
| Model | 8564EC |
|---|
The Keysight (Agilent) 8564EC offers wide frequency coverage from 100 kHz to 22 GHz, featuring advanced diagnostics, an enhanced user interface, and precise resolution bandwidths for detailed spectrum analysis.
Designed for both field and lab environments, it supports multiple analysis bandwidths and frequency markers to ensure accurate signal diagnostics in various RF applications.
Testwall can supply the used Keysight (Agilent) 8564EC, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8564EC.
