Keysight (Agilent) 86122C
| Attribute | Value |
|---|---|
| Wavelength Range | 1270 nm to 1650 nm |
| Wavelength Accuracy | ±0.3 pm (typical) |
| Wavelength Resolution | 0.001 pm |
| Power Range | -90 dBm to +20 dBm |
| Power Accuracy | ±0.5 dB |
| Number of Optical Inputs | 2 (dual optical input ports) |
| Measurement Speed | Up to 2000 lines/second (fast mode) |
| Minimum Line Spacing | 2.5 GHz |
| Interface | GPIB, USB, and LAN (LXI compliant) |
| Form Factor | Benchtop, 2U half-rack width |
| Model | 86122C |
|---|

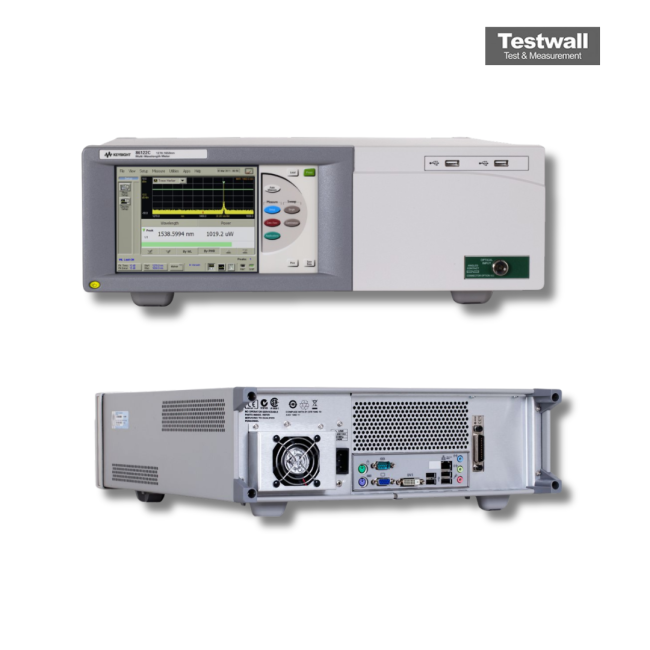

Keysight (Agilent) 86122C Multi-Wavelength Meter
The Keysight (Agilent) 86122C Multi-Wavelength Meter is a sophisticated instrument, designed to accurately measure and characterize multiple wavelengths of light in optical systems. Its wavelength range of 1270 to 1650 nm covers all fiber-to-the-home, metro and long-haul transmission systems. The instrument can measure the spectra of up to 1,000 laser lines at once, which is more than sufficient for fully populated dense-wavelength-division multiplexed systems (DWDM).
Keysight (Agilent) 86122C Multi-Wavelength Meter is capable of simultaneously measuring and displaying multiple wavelengths of light within a wide spectral range. This feature is essential for characterizing optical signals containing multiple wavelengths, such as those used in telecommunications, fiber optics, and laser systems. The built-in applications for optical signal-to-noise ratio, wavelength and power drift allow smart stand-alone test stations, which reduces footprint requirements and costly test procedure development. Keysight (Agilent) 86122C Multi-Wavelength Meter is having built-in HeNe reference laser which guarantees an accurate absolute wavelength measurement real-time determined against the standard anytime and ensures accurate and reproducible experimental results.
Specifications for the Keysight (Agilent) 86122C Multi-Wavelength Meter Include:
| Absolute Wavelength Accuracy | ± 0.2 ppm |
| Best Power Accuracy | ± 0.5 dB |
| Minimum resolvable separation | 5 GHz |
| Maximum Linewidth in Narrowband Mode | 2.5 GHz |
