Keysight (Agilent)

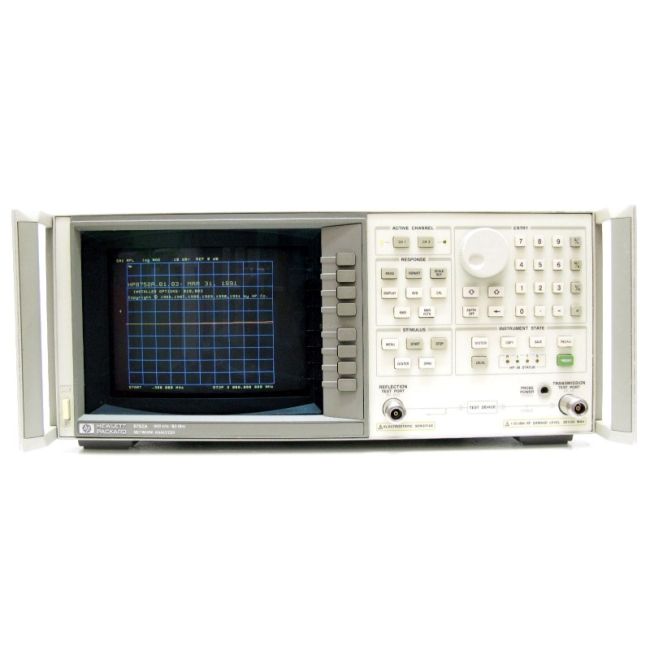

Keysight (Agilent) 8752A
Network Analyzer, 300 kHz - 1.3 GHz
300 kHz to 1.3 GHz Frequency Range
S11, S21, S12, S22 (full two-port S-parameters) Measurement Parameters
Up to 100 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
50 Ohms Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 1.3 GHz |
| Measurement Parameters | S11, S21, S12, S22 (full two-port S-parameters) |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Impedance | 50 Ohms |
| Display | Built-in CRT display with multiple trace formats including Log Magnitude, Phase, Smith Chart, and Polar |
| Number of Data Points | 3 to 801 points per sweep |
| Sweep Time | Minimum 50 ms (fast sweep mode) |
| Connector Type | Type-N (50 Ohm) test port connectors |
| Interface | HP-IB (GPIB) for remote control and automation |
Keysight (Agilent) 8752A Options:
- 8752A - 003 - 3 GHz Frequency Extension (300 kHz to 3 GHz)
- 8752A - 010 - Time Domain Capability
- 8752A - 802 - Add Dual Disk Drive and Cable
- 8752A - 908 - Rack Mount Kit (without handles)
- 8752A - 910 - Extra Manual
- 8752A - 913 - Rack Mount Kit
| Model | 8752A |
|---|
The Keysight (Agilent) 8752A Network Analyzer enables vector network measurements from 300 kHz to 1.3 or optionally 3 GHz, with integrated source, test set, and receiver.
Ideal for service, inspection, and production, it offers +5 to -20 dBm power, 100 dB dynamic range, and multiple display formats including Smith chart and polar.
Testwall can supply the used Keysight (Agilent) 8752A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8752A.
