Keysight (Agilent) AC6801B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 310 Vrms (AC), 0 to 438 Vdc (DC) |
| Output Power | 500 VA |
| Output Current | 4 Arms maximum (AC), 5.7 Adc maximum (DC) |
| Frequency Range | DC, 16 Hz to 1000 Hz |
| Output Voltage Accuracy | ±(0.1% + 0.1 V) for AC; ±(0.1% + 0.15 V) for DC |
| Total Harmonic Distortion (THD) | Less than 0.5% (resistive load, 45–1000 Hz) |
| Output Waveform | Sine wave (AC), DC output capable |
| Input Voltage | 100/200 Vac ±10%, single phase, 50/60 Hz |
| Dimensions (W x H x D) | 213 mm x 133 mm x 497 mm (half-rack, 3U) |
| Weight | Approximately 20 kg |
| Model | AC6801B |
|---|

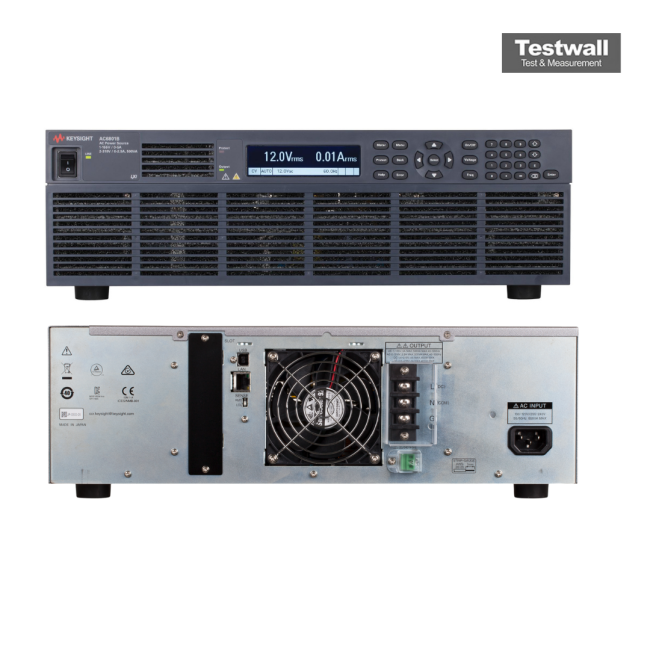

The Keysight (Agilent) AC6801B is a single-phase AC power source delivering 500VA with selectable low (155V/5A) and high (310V/2.5A) output ranges and supports frequencies from 40 to 500 Hz. It includes accurate AC, DC, and AC+DC measurements, an intuitive user interface, and LAN/LXI Core and USB standard interfaces, with optional GPIB.
Perfect for both AC and DC output applications, the AC6801B offers flexible measurement modes and remote control via browser for enhanced usability in test setups.
Testwall can supply the used Keysight (Agilent) AC6801B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) AC6801B.
