Keysight (Agilent) AC6802B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 VAC |
| Output Frequency Range | 45 Hz to 500 Hz |
| Maximum Output Power | 500 VA |
| Maximum Output Current | 4.2 A RMS (at 120 V), 2.1 A RMS (at 240 V) |
| Output Voltage Accuracy | ±(0.5% + 0.5 V) |
| Output Frequency Accuracy | ±0.1 Hz |
| Total Harmonic Distortion (THD) | Less than 1% (at full resistive load) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Interface | USB, GPIB (optional), RS-232 |
| Operating Temperature | 0°C to 40°C |
Keysight (Agilent) AC6802B Options:
- AC6802B - AC68BALGU - Upgrade - user-installable analog interface board for AC6800B Series AC sources
- AC6802B - AC68BFIU - Upgrade - user-installable inhibit interface board for AC6800B Series AC sources
- AC6802B - AC68GPBU - Upgrade - user-installable GPIB interface board for AC6800B Series AC sources
- AC6802B - AC68BRAC3 - Rack mount flange kit for AC6801B, AC6802B, AC6803B
| Model | AC6802B |
|---|

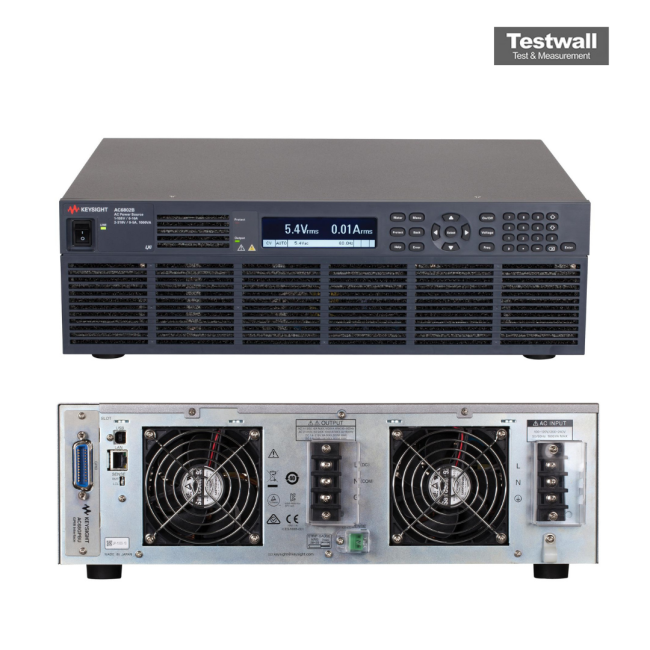

KEYSIGHT AC6802B AC Power Source
The Keysight AC6802B AC power source offers the quality and capability you need for simulating global AC power conditions, testing varying frequency and voltage combinations, power factor correction testing and similar AC + DC applications. The AC6802B's simple user interface allows you to easily access and view setup and measurement information directly from the front panel or programmatically.
The Keysight AC6802B AC power source has two voltage ranges: 155 V (low) and 310 V (high). Users of the Keysight AC6802B can program the voltage, frequency, frequency limits, and starting phase angle of the AC output. Measurements may be AC coupled, DC coupled, or AC+DC coupled independent of the output coupling mode. Keysight AC6802B AC power source comes with LAN/LXI Core and USB interfaces (standard).
Specifications of the KEYSIGHT AC6802B AC Power Source includes:
| AC Power | 1000V |
| Voltage Low/High | 0-155V/0-310V |
| Frequency | 40-500Hz |
| Peak Cur Low/High | 10A/5A |
See Datasheet for Full Specifications
