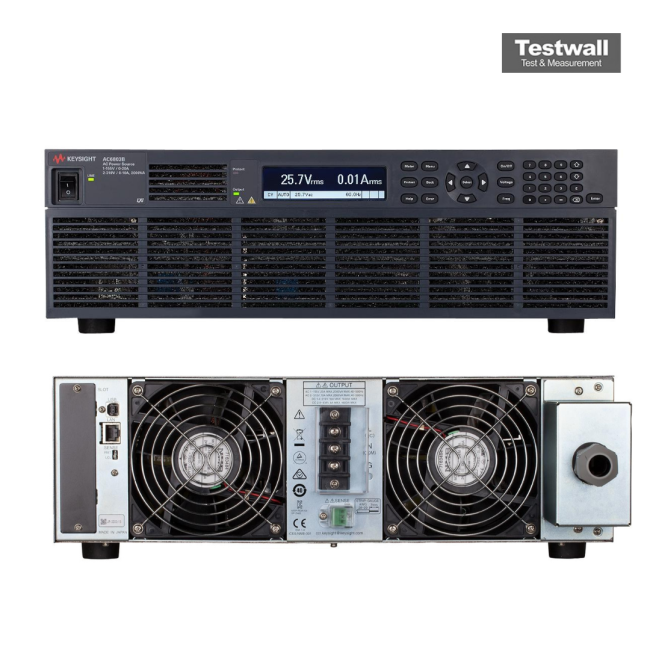

Keysight (Agilent) AC6803B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 310 V AC (RMS) |
| Maximum Output Power | 500 VA |
| Output Frequency Range | 45 Hz to 500 Hz |
| Output Current (Max RMS) | 4.2 A RMS |
| Output Current (Max Peak) | 12.6 A Peak |
| Total Harmonic Distortion (THD) | Less than 0.5% (at resistive load) |
| Input Voltage | 100 V / 200 V AC (Selectable), Single Phase |
| Voltage Programming Resolution | 0.1 V |
| Frequency Programming Resolution | 0.01 Hz |
| Interface / Connectivity | GPIB, USB, RS-232 |
| Model | AC6803B |
|---|
The Keysight (Agilent) AC6803B AC Power Source delivers up to 2000VA with selectable low (155Vrms/20A) and high (310Vrms/10A) ranges across 40–500Hz. It supports AC, DC, and AC+DC output modes, with comprehensive measurements including voltage, current, and power. This model features an intuitive interface, remote browser access, and connectivity via LAN/LXI Core, USB, and optional GPIB.
Ideal for testing power devices and circuits, the AC6803B ensures flexibility and accuracy in both lab and production environments. Output and measurement modes are fully independent, making it highly versatile.
Testwall can supply the used Keysight (Agilent) AC6803B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) AC6803B.
