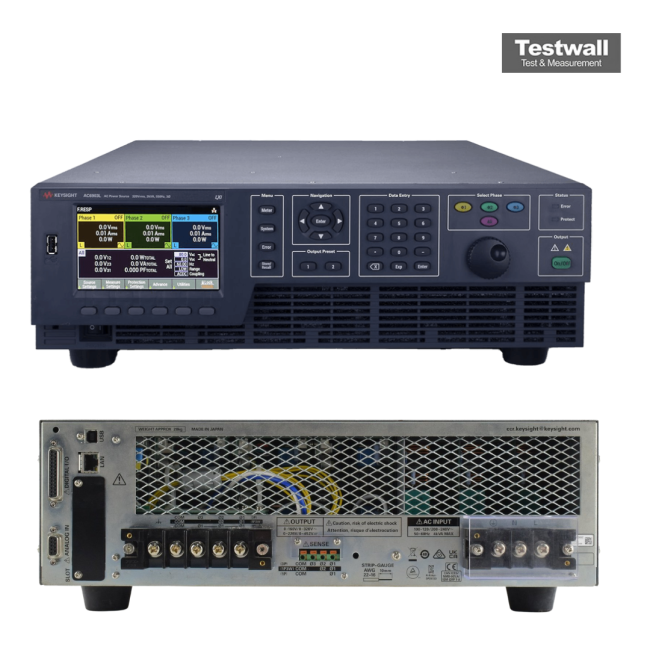

Keysight (Agilent) AC6903L
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 VAC |
| Output Current (Max) | 3 A |
| Output Power (Max) | 900 VA |
| Output Frequency Range | 45 Hz to 500 Hz |
| Number of Output Phases | Single Phase |
| Input Voltage | 115 VAC / 230 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Total Harmonic Distortion (THD) | Less than 0.5% (resistive load) |
| Waveform Type | Sine Wave |
| Form Factor | Bench Top |
| Model | AC6903L |
|---|
The Keysight (Agilent) AC6903L is a versatile 3 Phase AC Power Source delivering up to 3000VA with selectable single, two, and three-wire modes. It supports AC, DC, and AC+DC outputs with voltage up to 320Vrms AC or 452V DC, and frequency range from 1Hz to 550Hz. Integrated features include waveform generation, harmonic analysis, and current protection.
Ideal for advanced testing, the AC6903L provides flexible analog/digital control, soft start/stop functions, and multiple I/O options including LAN, USB, and optional GPIB.
Testwall can supply the used Keysight (Agilent) AC6903L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) AC6903L.
