Keysight (Agilent) B1505A
| Attribute | Value |
|---|---|
| Voltage Force Range | Up to 10 kV |
| Current Force Range | Up to 1500 A (pulse) |
| Current Measurement Range | 1 fA to 1500 A |
| Voltage Measurement Range | 0.5 µV to 10 kV |
| Number of Slots | 10 slots for source/measurement modules |
| Supported Device Types | Power semiconductors including MOSFETs, IGBTs, diodes, and SiC/GaN devices |
| Measurement Capabilities | IV characteristics, capacitance-voltage (CV), gate charge (Qg), and breakdown voltage |
| Interface/Connectivity | GPIB, USB, and LAN (LXI compliant) |
| Software Compatibility | Compatible with Keysight EasyEXPERT software for device characterization |
| Power Supply Requirement | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) B1505A Options:
- B1505A - 015 - 1.5 m cable
- B1505A - 030 - 3.0 m cable
- B1505A - 050 - 50 Hz line frequency
- B1505A - 060 - 60 Hz line frequency
- B1505A - A6J - ANSI Z540 compliant calibration
- B1505A - UK6 - Commercial calibration certificate with test data
- B1505A - ABA - English documentation
- B1505A - ABJ - Japanese documentation
- B1500A - 1CM - Rackmount kit
- B1510A - (module) - High Power Source Monitor Unit (HPSMU)
- B1511B - (module) - Medium Power Source Monitor Unit (MPSMU)
- B1512A - (module) - High Current Source Monitor Unit (HCSMU)
- B1513C - (module) - High Voltage Source Monitor Unit (HVSMU)
- B1514A - (module) - Medium Current Source Monitor Unit (MCSMU)
- B1520A - (module) - Multi Frequency Capacitance Measurement Unit (MFCMU)
- B1505AU - 001 - Conversion kit from B1500A to B1505A
- B1505AU - 010 - High power source monitor unit (B1510A)
- B1505AU - 11B - Medium power source monitor unit (B1511B)
- B1505AU - 012 - High current source monitor unit (B1512A)
- B1505AU - 13C - High voltage source monitor unit (B1513C)
- B1505AU - 014 - Medium current source monitor unit (B1514A)
- B1505AU - 020 - Multi frequency capacitance measurement unit (B1520A)
- B1505AU - SWS - EasyEXPERT Extension support and subscription
- B1505AP - H20 - 3 kV / 20 A / Fixture Pack
- B1505AP - H21 - 3 kV / 20 A / C-V / Fixture Pack
- B1505AP - H50 - 3 kV / 500 A / Fixture Pack
- B1505AP - H51 - 3 kV / 500 A / C-V / Fixture Pack
- B1505AP - H70 - 3 kV / 1500 A / Fixture Pack
- B1505AP - H71 - 3 kV / 1500 A / C-V / Fixture Pack
- B1505AP - U50 - 10 kV / 500 A / Fixture Pack
- B1505AP - U70 - 10 kV / 1500 A / Fixture Pack
- N1265A - 015 - 1500 A Current Option
| Model | B1505A |
|---|

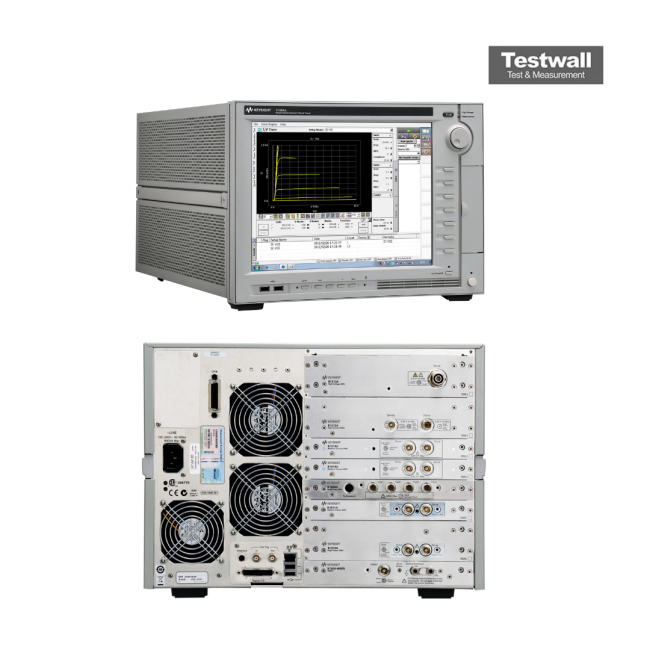

The Keysight (Aglient) B1505A Power Device Analyzer / Curve Tracer is a single-box solution capable of characterizing high-power devices from sub-picoamp levels to 3000 V and 20 A. It includes modular high-current (HCSMU), high-voltage (HVSMU), high-power (1 A/200 V) SMUs, and a multi-frequency (up to 5 MHz) capacitance unit within a ten-slot chassis. Rotary knob control, on-board disk, and USB storage streamline real-time device sweeps and data logging.
Ideal for evaluating wide-bandgap devices (SiC, GaN), power MOSFETs, diodes, and IGBTs, it supports large customizable fixtures with interlock safety to accommodate diverse package types and high-voltage testing requirements.
Testwall can supply the used Keysight (Aglient) B1505A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the B1505A
