Keysight (Agilent) B2983B
| Attribute | Value |
|---|---|
| Current Measurement Range | 100 fA to 20 mA |
| Current Measurement Resolution | 10 aA (10 × 10⁻¹⁸ A) |
| Voltage Source Range | ±1000 V (with optional high voltage range) |
| Built-in Voltage Source | ±1000 V, ±100 V, ±10 V (3 ranges) |
| Input Resistance | Greater than 10 PΩ (10 × 10¹² Ω) |
| Charge Measurement Range | 20 nC (nano-coulombs) |
| Display | 4.3-inch color LCD with numeric and graphical display modes |
| Interface / Connectivity | USB, GPIB, LAN (LXI Core 2011) |
| Trigger System | Internal, external, and manual trigger with programmable trigger delay |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
Keysight (Agilent) B2983B Options:
- B2983B - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- B2983B - A6J - ANSI Z540-1-1994 Calibration
- B2983B - UK6 - Commercial calibration certificate with test data
| Model | B2983B |
|---|

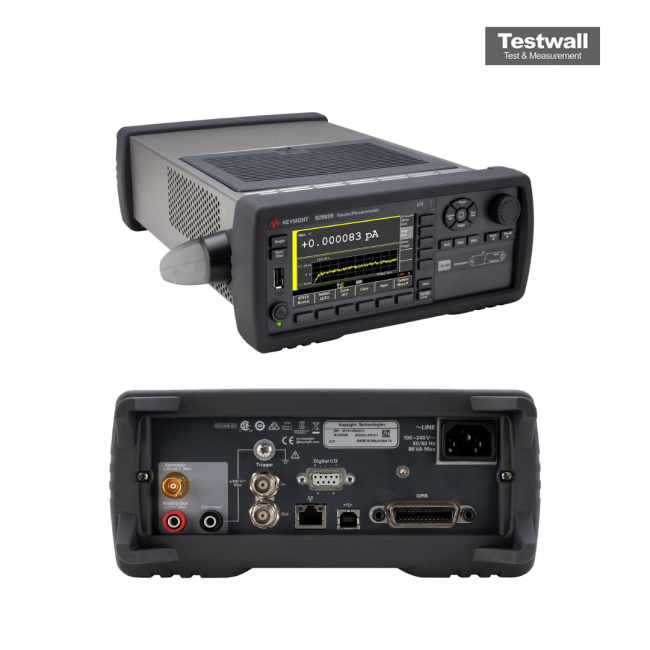

Keysight (Agilent) B2983B Femto/Picoammeter
The Keysight B2983B Femto/Picoammeter is the world's only graphical picoammeter that allows you to confidently measures small currents with 0.01 fA (0.01 x 10-15 A) resolution. In addition, battery operation eliminates AC line noise from your critical measurements. It possesses a 4.3 " color LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behavior and perform quick statistical analyses without a PC.
In addition to these impressive measurement capabilities, the Keysight B2983B has easy-to-use and convenient measurement assist functions that permit users with limited or no electrical engineering training to perform complicated electrical characterization operations with ease. Even when operating in AC mode with 0.1 PLC integration time, the B2983B's advanced design provides cur measurement performance that is much better than conventional picoammeters.
Specifications for the Keysight (Agilent) B2983B Femto/Picoammeter Include:
| Measurement resolution | 6.5 digits |
| Cur measurement | 0.01 fA - 20 mA |
| Minimum range | 2 pA |
| Maximum reading rate | 20,000 rdg/s |
