Keysight (Agilent) DAQM907A
| Attribute | Value |
|---|---|
| Module Type | Multifunction Module |
| Compatible Mainframe | Keysight DAQ970A / DAQ973A |
| Digital I/O Channels | 20-bit Digital I/O (2 ports of 8-bit, 1 port of 4-bit) |
| Totalizer Channels | 1 channel, 26-bit totalizer (count up to 67 million events) |
| Totalizer Maximum Input Frequency | 100 kHz maximum input frequency |
| DAC Analog Output Channels | 2 channels, 16-bit Digital-to-Analog Converter (DAC) |
| DAC Output Voltage Range | ±12V output voltage range |
| DAC Output Current | ±10 mA maximum output current per channel |
| Digital I/O Voltage Levels | TTL/CMOS compatible, 0V to 5V logic levels |
| Form Factor / Slot Requirement | Single-slot module for DAQ970A/DAQ973A mainframe |
Keysight (Agilent) DAQM907A Options:
- DAQM907A - DAQM900A - 20-Channel General Purpose Multiplexer (solid state, 2-wire/4-wire selectable, 450 ch/s, 120V)
- DAQM907A - DAQM901A - 20-Channel General Purpose Multiplexer + 2 current channels (armature, 2-wire/4-wire selectable, 80 ch/s, 300V)
- DAQM907A - DAQM902A - 16-Channel Multiplexer (reed, 2-wire/4-wire selectable, 250 ch/s, 300V)
- DAQM907A - DAQM903A - 20-Channel Actuator/GP Switch (SPDT/Form C, 300V, 1A)
- DAQM907A - DAQM904A - 4x8 Matrix Switch (2-wire armature, 300V, 1A)
- DAQM907A - DAQM905A - Dual 4-Channel RF Multiplexer 50Ω (2 GHz bandwidth)
- DAQM907A - DAQM908A - 40-Channel Single-Ended Multiplexer (1-wire armature, common low, 300V, 1A)
- DAQM907A - DAQM909A - 4-Channel Digitizer (simultaneous sampling, 800 kSa/s, 24-bit resolution, differential inputs)
- DAQM907A - DAQM910A - 20-Channel Low Voltage Multiplexer (2-wire armature, 4-wire selectable, 40 Vpk, 1A)
| Model | DAQM907A |
|---|

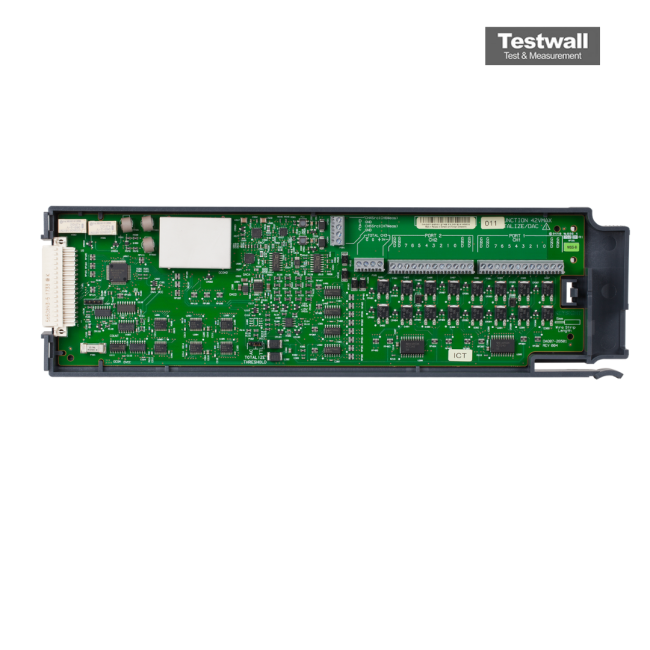

Keysight (Agilent) DAQM907A Multifunction Module for DAQ970A and DAQ973A
Keysight (Agilent) DAQM907A Multifunction Module designed for use with the DAQ970A and DAQ973A data aquisition systems. It combines two 8-bit ports of digital input and output, a 100 kHz gated totalizer, and two ±12V analog outputs, making it versatile for various control and measurement applications. The analog outputs have two additional voltage/cur sensing channels. The digital inputs and totalizer input may be included in a scan. Alarm limits for the digital and event counter inputs are evaluated continuously, capturing and logging alarm conditions even between scans.
Keysight (Agilent) DAQM907A Multifunction Module offers digital inputs to sense limit switch and digital bus status. you can use the digital outputs with an external power supply to control microwave switches and attenuators, solenoids, power relays, indicators, and more. Totalize Input Count events from devices like photo interrupters, limit switches, and Hall-effect sensors. Use the two electronically calibrated analog outputs to source bias voltages to your device under test, to control your analog programmable power supplies, or use the outputs as setpoints for your control systems. The outputs are programmed directly in volts, either from the front panel or from the bus. Keysight (Agilent) DAQM907A Multifunction Module is earth referenced, simplifying connections and ensuring safety.
Specifications for the Keysight (Agilent) DAQM907A Multifunction Module for DAQ970A and DAQ973A Include:
| Number of channels | Two 8-bit digital I/O ports, Two 18-bit analog outputs |
| Bandwidth | 100 kHz |
| Voltage mode current | 15 mA max per channel |
| Cur mode compliance | 12 V |
