Keysight (Agilent)

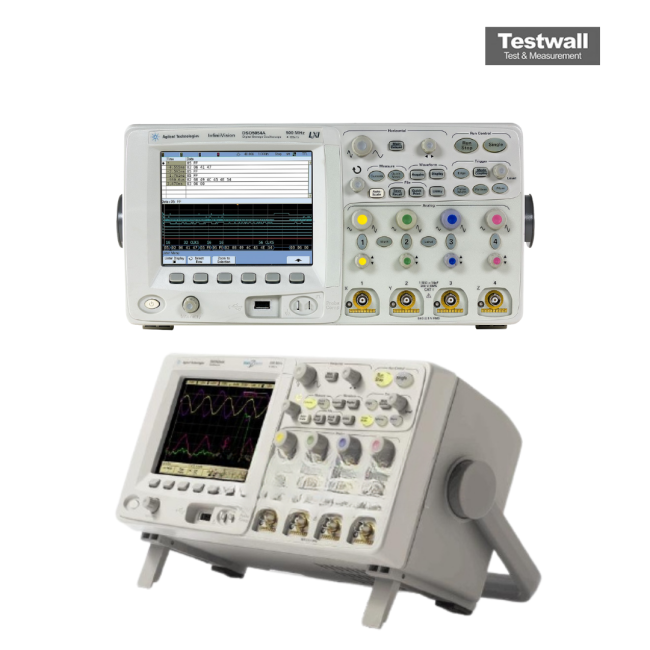

Keysight (Agilent) DSO5054A 4 Ch 500MHz Oscilloscope
4 Ch 500MHz Oscilloscope
500 MHz Bandwidth
4 Number of Channels
2 GSa/s (on 2 channels), 1 GSa/s (on 4 channels) Sample Rate
4 Mpts (standard), 8 Mpts (optional upgrade) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s (on 2 channels), 1 GSa/s (on 4 channels) |
| Memory Depth | 4 Mpts (standard), 8 Mpts (optional upgrade) |
| Vertical Resolution | 8-bit |
| Timebase Range | 2 ns/div to 50 s/div |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Display | 7-inch WVGA (800 x 480) color display |
| Trigger Types | Edge, Pulse Width, Pattern, CAN, LIN, I2C, SPI, USB (with options) |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
Keysight (Agilent) DSO5054A 4 Ch 500MHz Oscilloscope Options:
- DSO5054A - Opt 900 - Power Cord, U.K. (Cable Part Number 8120-1703)
- DSO5054A - Opt 901 - Power Cord, Australia (Cable Part Number 8120-0696)
- DSO5054A - Opt 902 - Power Cord, Europe (Cable Part Number 8120-1692)
- DSO5054A - Opt 903 - Power Cord, U.S.A. (Cable Part Number 8120-1521)
- DSO5054A - Opt 906 - Power Cord, Switzerland (Cable Part Number 8120-2296)
- DSO5054A - Opt 912 - Power Cord, Denmark (Cable Part Number 8120-2957)
- DSO5054A - Opt 917 - Power Cord, South Africa (Cable Part Number 8120-4600)
- DSO5054A - Opt 918 - Power Cord, Japan (Cable Part Number 8120-4754)
- DSO5054A - Opt 919 - Power Cord, Israel (Cable Part Number 8120-6799)
- DSO5054A - Opt 920 - Power Cord, Argentina (Cable Part Number 8120-6871)
- DSO5054A - Opt 921 - Power Cord, Chile (Cable Part Number 8120-6979)
- DSO5054A - Opt 922 - Power Cord, China (Cable Part Number 8120-8377)
- DSO5054A - Opt 927 - Power Cord, Thailand (Cable Part Number 8120-8871)
- DSO5054A - SEC - Secure Environment Mode Option (NISPOM Chapter 8 compliant, volatile memory storage)
| Model | DSO5054A |
|---|
The Keysight (Agilent) DSO5054A is a 4-channel digital oscilloscope with 500 MHz bandwidth, perfect for education and essential lab use.
Delivers precise waveform capture and fundamental measurement capabilities.
Testwall can supply the used Keysight (Agilent) DSO5054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO5054A.
