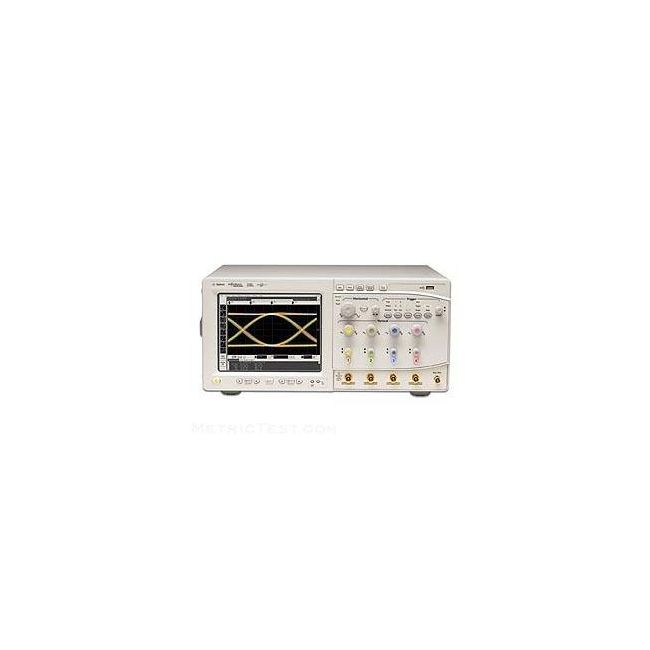

Keysight (Agilent) DSO80404B 4 Ch 4 GHz Digital Oscilloscope
4 Ch 4 GHz Digital Oscilloscope
4 GHz Bandwidth
4 Number of Channels
20 GSa/s Sample Rate
Up to 1 Gpts (with option) Memory Depth
8-bit (up to 12-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GSa/s |
| Memory Depth | Up to 1 Gpts (with option) |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Rise Time | 116 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Timebase Range | 20 ps/div to 20 s/div |
| Display | 12.1-inch XGA color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
Keysight Technologies DSO80404B 4 Ch 4 GHz Digital Oscilloscope Options:
- DSO80404B - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO80404B - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO80404B - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO80404B - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO80404B - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO80404B - 006 - My Infiniium integration package (installed at the factory)
- DSO80404B - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO80404B - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO80404B - 009 - InfiniiScan event identification software (installed at the factory)
- DSO80404B - 010 - Infiniium user defined function application software (installed at the factory)
- DSO80404B - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO80404B - 1CM - Rack-mount kit (E2609B)
- DSO80404B - A6J - ANSI Z540-compliant calibration
| Model | DSO80404B |
|---|
The Keysight (Agilent) DSO80404B oscilloscope features 4 GHz bandwidth (upgradeable to 13 GHz), 4 analog channels, up to 40 GSa/s sampling, and an XGA display with 256 intensity levels.
Delivers ultra-low noise, <1 ps jitter, deep signal analysis, EZJIT Plus, and full serial compliance toolsets including USB, HDMI, and DDR2.
Testwall can supply the used Keysight (Agilent) DSO80404B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO80404B.
