Keysight (Agilent) E36233A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 30 V (two outputs) |
| Output Current Range | 0 to 20 A (two outputs) |
| Maximum Output Power | 400 W total (200 W per output) |
| Number of Outputs | 2 (Auto-Series and Auto-Parallel capable) |
| Line Regulation (Voltage) | ≤ 5 mV |
| Load Regulation (Voltage) | ≤ 5 mV |
| Ripple and Noise (RMS) | ≤ 3 mV rms / 30 mV peak-to-peak |
| Programming Interface | USB, LAN (LXI), GPIB (optional) |
| Display | 3.5-inch color LCD display |
| Operating Temperature | 0°C to 40°C |
Keysight (Agilent) E36233A Options:
- E36233A - SEC - NISPOM and file security
- E36233A - UK6 - Commercial calibration with test result data
- E36233A - E363GPBU - GPIB user installable interface module
- E36233A - 1CM116A - Rack mount flange kit with one flange bracket, one half-module bracket
- E36233A - 1CM104A - Rack mount flange kit with two flange brackets
- E36233A - 1CM105A - Rack mount flange kit without handles and two flange brackets
- E36233A - 1CN107A - Handle kit with two front handles
- E36233A - 1CP108A - Rack mount flange and handle kit with two brackets and front handles
| Model | E36233A |
|---|

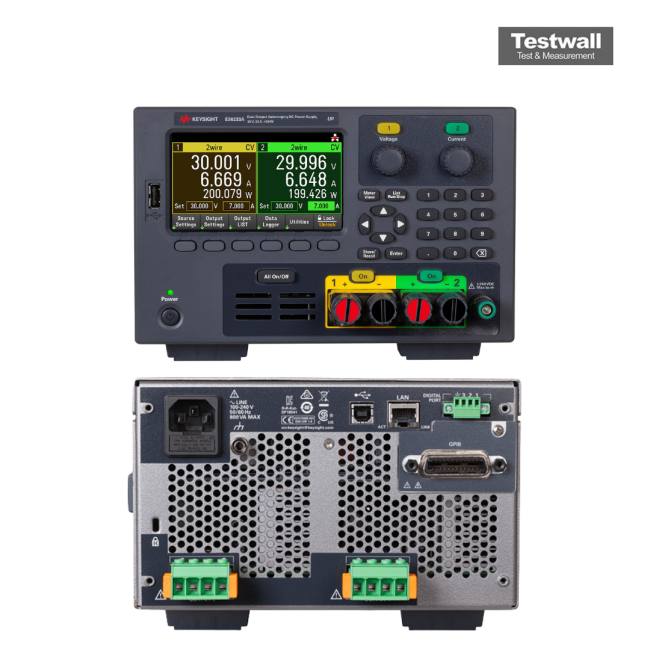

Keysight (Agilent) E36233A DC Power Supply
When you need up to 400W of power on the bench, the Keysight E36233A is ready for your application. With low output ripple/noise and layers of device protection, you can test with confidence and power your next insight. Autoranging technology gives you the highest cur available at all output voltage. The E36233A is fully SCPI programmable power supplies with built-in USB, LAN, and optional GPIB interfaces. Advance features include data logging, LIST mode, and synchronization through input and output triggers. High cur applications benefit from an adjustable slew rate and remote 4-wire sense.
The Keysight E36233A provides clean power with less than 350 µVrms ripple and noise. Precise output control allows voltage set with 0.03% accuracy and cur set with 0.1% accuracy. Similar readback accuracy allows precision measurements to be made from the front panel, eliminating the need for an external multimeter. The two outputs on these models can also set to series or parallel mode on the front panel to double the cur and/or voltage. . The E36233A ships standard with LAN and USB. GPIB is also an available option.
Specifications for the Keysight (Agilent) E36233A DC Power Supply Include:
| Voltage | 30V |
| Current | 20A |
| Total Power | 400W |
| Output Channels | 2 |
