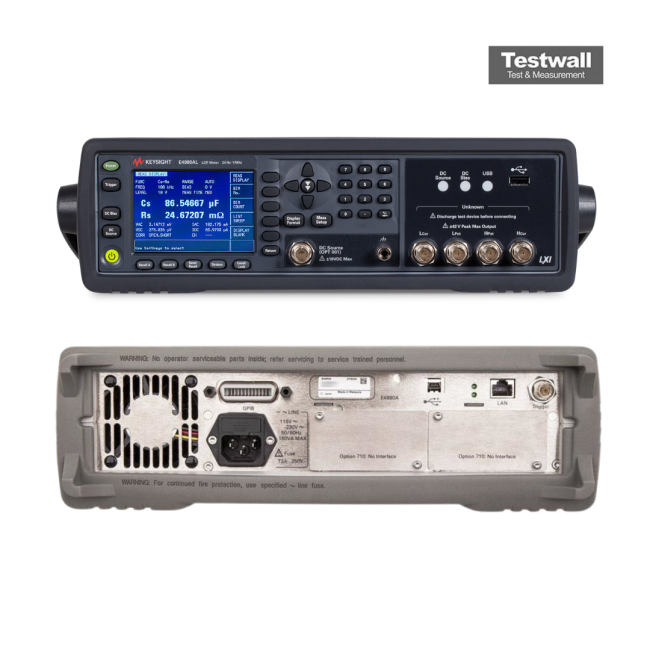

Keysight (Agilent) E4980AL
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 300 kHz (standard), upgradeable to 500 kHz or 1 MHz |
| Measurement Parameters | |Z|, |Y|, θ, R, X, G, B, Cs, Cp, Ls, Lp, Rs, Rp, D, Q, Δ%, DCR |
| Basic Accuracy | 0.05% |
| Test Signal Level (Voltage) | 5 mV to 2 V RMS |
| Test Signal Level (Current) | 50 μA to 20 mA RMS |
| Measurement Range | 1 mΩ to 100 MΩ (impedance) |
| DC Bias Voltage | 0 to ±2 V DC internal bias (external bias up to ±40 V with external unit) |
| Interface | USB, LAN (LXI), GPIB (optional) |
| Measurement Speed | Fast: approx. 5.6 ms, Medium: approx. 15 ms, Slow: approx. 100 ms (at 1 kHz) |
| Form Factor | Half-rack, 2U (fits standard 19-inch rack with optional adapter) |
Keysight (Agilent) E4980AL Options:
- E4980AL - 032 - Frequency range 20 Hz to 300 kHz
- E4980AL - 052 - Frequency range 20 Hz to 500 kHz
- E4980AL - 102 - Frequency range 20 Hz to 1 MHz
| Model | E4980AL |
|---|
The Keysight (Agilent) E4980AL Precision LCR Meter offers 0.05% accuracy and superior repeatability for testing components from 20 Hz to 2 MHz. It features DC resistance, auto level control, 201-point list sweep, and multiple test modes with selectable signal levels up to 2 Vrms and 20 mArms. Connectivity includes USB, LAN, and GPIB, supporting test cable lengths up to 4 meters.
Ideal for R&D and production, the E4980AL provides fast, precise impedance measurements over a wide frequency range, with optional frequency and interface upgrades.
Testwall can supply the used Keysight (Agilent) E4980AL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4980AL.
