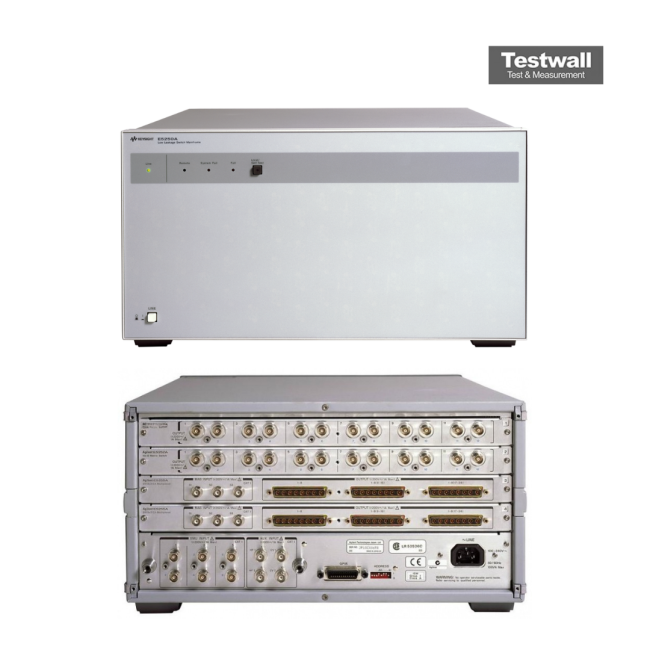

Keysight (Agilent) E5250A
| Attribute | Value |
|---|---|
| Number of Channels | Up to 128 channels (with expansion cards) |
| Maximum Voltage | ±200 V |
| Maximum Current | 200 mA per channel |
| On-Resistance | Less than 1 Ω (typical) |
| Off-Isolation | Greater than 100 dB at 1 kHz |
| Switch Configuration | 4-wire (Kelvin) and 2-wire switching capability |
| Card Slots | 4 slots for plug-in cards (E5252A, E5255A, E5257A) |
| Interface | GPIB (IEEE-488) and RS-232 |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 VA maximum |
Keysight (Agilent) E5250A Options:
- E5250A - 001 - 10 x 12 Matrix Switch (From 10 x 12 to 10 x 48 matrix per frame, up to 4 cards)
- E5250A - 501 - 24-Channel (8 x 3) Multiplexer (From 24 to 96 channels per frame, up to 4 cards)
- E5250A - 301 - Relay Function Test Adapter (for self test)
| Model | E5250A |
|---|
The Keysight (Agilent) E5250A Low Leakage Switch Mainframe supports automated test systems with up to 384 output channels, modular configurations, and low-current triaxial switching. It offers 20 fA resolution, 10 MHz bandwidth, and channel isolation of 10 teraohms. Compatible with E5252A matrix and E5255A multiplexer cards.
Designed for parametric and long-term reliability testing, the E5250A supports Kelvin and non-Kelvin configurations and integrates easily with Keysight EasyEXPERT software for automation.
Testwall can supply the used Keysight (Agilent) E5250A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5250A.
