Keysight (Agilent) E5252A
| Attribute | Value |
|---|---|
| Number of Channels | 10 x 1 (10 inputs to 1 output) per card |
| Matrix Configuration | 10 x 1 Single-Ended Matrix Switch |
| Maximum Voltage | 300 V DC or Peak AC |
| Maximum Current | 1 A per channel |
| Maximum Power | 2 W per channel |
| Contact Resistance | Less than 1 Ohm initial |
| Insulation Resistance | Greater than 10^9 Ohm at 500 V DC |
| Relay Type | Electromechanical Relay |
| Relay Life Expectancy | 100,000,000 operations (resistive load) |
| Compatible Mainframe | Keysight E5250A Low-Leakage Switch Mainframe |
Keysight (Agilent) E5252A Options:
- E5250A - 001 - 10 x 12 matrix switch: From 10 x 12 to 10 x 48 matrix per frame (Option 001 x 1 to 4)
- E5250A - 301 - Relay function test adapter (for self test)
- E5250A - 501 - 24-channel (8 x 3) multiplexer: From 24 to 96 channels per frame (Option 501 x 1 to 4)
- E5250A - 16494A - Triaxial Cable
- E5250A - 16494B - Kelvin Triaxial Cable
- E5250A - 16494C - Kelvin Triaxial Cable for 4142
- E5250A - 16494D - 8 ch Shielded Coaxial Cable
- E5250A - 16494E - Wide Temperature 8 ch shielded Coaxial Cable
- E5250A - 16495A - Connector Plate w/12 Triax. Intlk/GNDU
- E5250A - 16495B - Connector Plate w/24 Triax. Intlk/GNDU
- E5250A - 16495C - Connector Plate w/6 8 ch SHLD conn
- E5250A - 16495D - Connector Plate w/12 8 ch SHLD conn
- E5250A - 16495E - Half Size Blank Plate
| Model | E5252A |
|---|

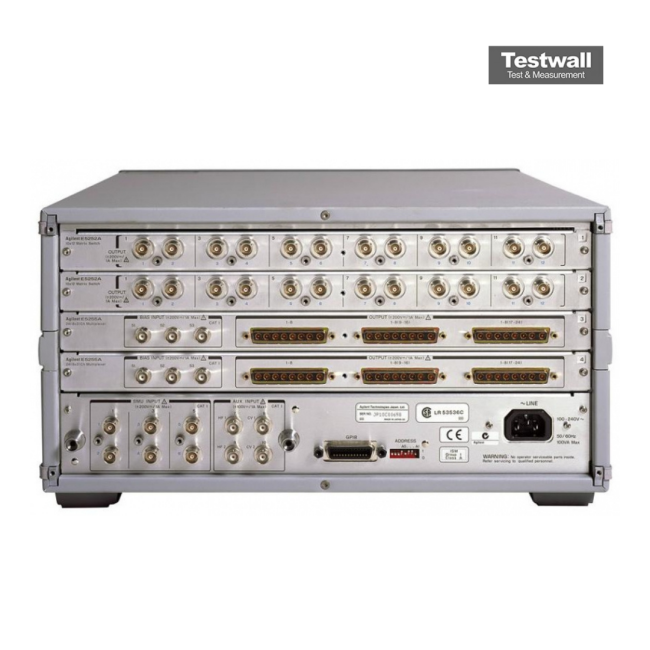

The Keysight (Agilent) E5252A is a 10x12 Matrix Switch Card engineered to integrate seamlessly with the E5250A Low Leakage Switch Mainframe. It features a modular design allowing for x12, x24, x36, and x48 triaxial output configurations. The card includes 6 low-current triaxial and 4 general-purpose coaxial inputs, with triaxial inputs 1 to 4 routed through dedicated internal paths and the remaining inputs multiplexed over shared internal paths.
Ideal for automated testing setups, the E5252A ensures precise routing and minimal signal leakage, making it suitable for low-current signal measurements and flexible configurations in semiconductor device evaluation systems.
Testwall can supply the used Keysight (Agilent) E5252A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5252A.
