Keysight (Agilent)
Keysight (Agilent) E5280B
Precision High Power Source / Monitor Unit Module
0 to ±100 V Voltage Range
0 to ±1 A Current Range
20 W per channel Maximum Power Output
1 channel (single channel SMU module) Number of Channels
0.5 µV (minimum) Voltage Measurement Resolution
| Attribute | Value |
|---|---|
| Voltage Range | 0 to ±100 V |
| Current Range | 0 to ±1 A |
| Maximum Power Output | 20 W per channel |
| Number of Channels | 1 channel (single channel SMU module) |
| Voltage Measurement Resolution | 0.5 µV (minimum) |
| Current Measurement Resolution | 10 fA (minimum) |
| Module Type | High Power Source/Monitor Unit (HPSMU) |
| Compatible Mainframe | Keysight B1500A Semiconductor Device Analyzer |
| Measurement Functions | Voltage sourcing, current sourcing, voltage measurement, current measurement |
| Compliance Setting | Voltage and current compliance programmable for device protection |
Keysight (Agilent) E5280B Options:
- E5270B - 015 - 1.5m cable length
- E5270B - 030 - 3.0m cable length
- E5270B - A01 - Four MPSMU package
- E5270B - A02 - Two MPSMU and two HRSMU package
- E5270B - A03 - Four HRSMU package
- E5270B - A10 - Add one HPSMU
- E5270B - A11 - Add one MPSMU
- E5270B - A17 - Add one HRSMU
- E5270B - A28 - Add atto sense and switch unit (ASU)
- E5270BU - 080 - Precision High Power Source/Monitor Unit Module (E5280B)/ No cable included
- E5270BU - 081 - Precision Medium Power Source/Monitor Unit Module (E5281B)/ No cable included
- E5270BU - 087 - High Resolution Source/Monitor Unit Module (E5287A)/ No cable included
- E5270BU - 88A - Atto Sense And Switch Unit (E5288A ASU) with 1.5 m Triax and Dsub Cable
- E5270BU - 88B - Atto Sense And Switch Unit (E5288A ASU) with 3 m Triax and Dsub Cable
- E5270BU - SWS - EasyEXPERT Extension support
| Model | E5280B |
|---|
Keysight (Agilent) E5280B

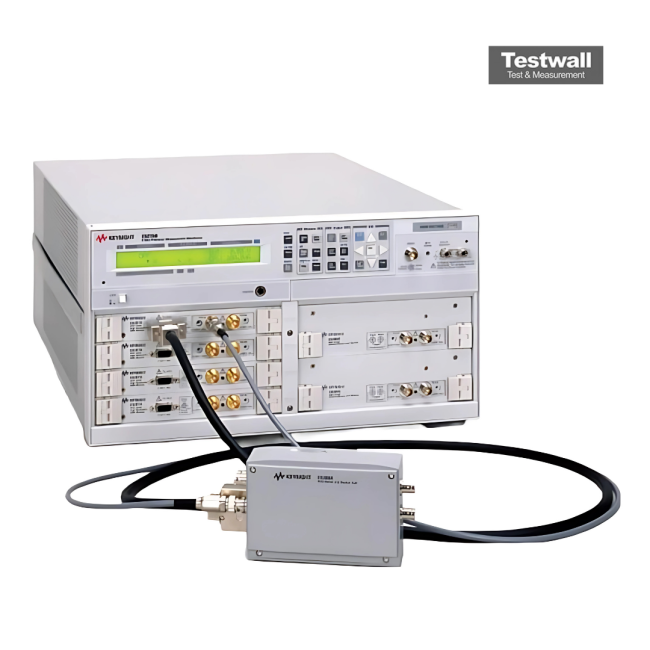

The Keysight E5280B is a High Power Source / Measurement Unit (HPSMU), that works with the E5270B Parametric Measurement System Mainframe, 8-Slot.
The range of the E5280B is -200 V to 200 V with a measurement resolution of 2 µV, -1 A to 1 A with a measurement resolution of 10 fA.
Download the Datasheet for full specs.
