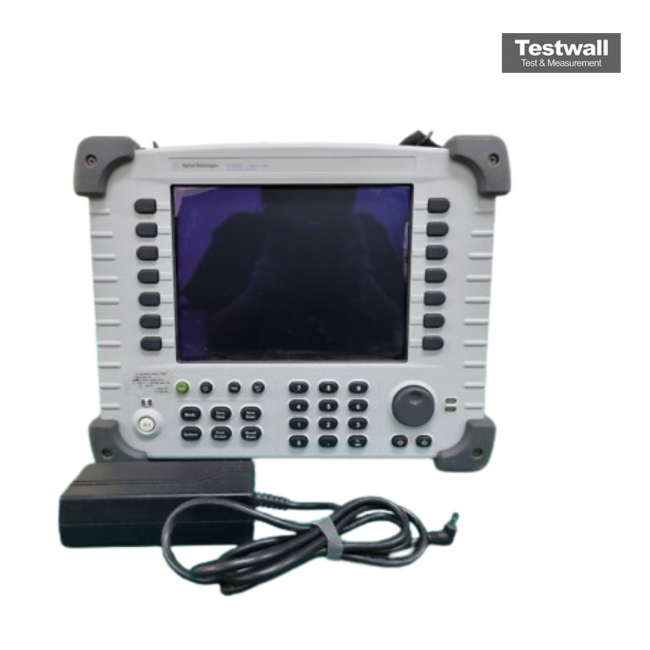

Keysight (Agilent) E7495B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Measurement Functions | Spectrum Analyzer, Channel Scanner, RSSI, Adjacent Channel Power, Occupied Bandwidth, Cable and Antenna Analyzer |
| Dynamic Range | Up to 95 dB |
| Display | 10.4-inch color TFT LCD touchscreen |
| Input Impedance | 50 Ohm |
| RF Input Power (Maximum) | +30 dBm (1 W) |
| Battery Life | Approximately 2 hours with standard battery; extended with optional battery pack |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
| Connectivity / Interface | Ethernet (LAN), USB, RS-232 |
| Weight | Approximately 4.5 kg (9.9 lbs) |
Keysight (Agilent) E7495B 2.5GHz Base Station Test Set Options:
- E7495B - 200 - Cdmaone And Cdma2000 1X Tx Analyzer
- E7495B - 205 - Cdma2000 1Xev-Do Analyzer
- E7495B - 210 - Cdmaone, Cdma2000 1X Over-The-Air Test
- E7495B - 220 - Channel Scanner
- E7495B - 230 - Gsm Tx Analyzer
- E7495B - 235 - Edge Tx Analyzer
- E7495B - 240 - W-Cdma (Umts) Tx Analyzer
- E7495B - 245 - Hsdpa Tx Analyzer
- E7495B - 250 - W-Cdma (Umts) Over-The-Air Test
- E7495B - 270 - Interference Analyzer
- E7495B - 300 - Dc Bias
- E7495B - 330 - Nortel Cdma Base Station Software
- E7495B - 500 - Cw Signal Generator
- E7495B - 510 - Cw, Cdmaone, Cdma2000 1X, Cdma2000 1Xev-Do, Iden Reverse Link Signal Generator
- E7495B - 600 - Power Meter (Requires Power Sensor)
- E7495B - 700 - T1 Analyzer
- E7495B - 710 - E1 Analyzer
- E7495B - 810 - Cellular Antenna And Pre-Selector Filter For Option 210
- E7495B - 811 - Pcs Antenna And Pre-Selector Filter For Option 210
- E7495B - 812 - Korean Pcs Antenna And Pre-Selector Filter (Required For Option 210)
- E7495B - 813 - Antenna And Pre-Selector Filter (Required For Option 250)
| Model | E7495B |
|---|
The Keysight (Agilent) E7495B 2.5GHz Base Station Test Set offers unmatched multifunctionality by integrating a power meter, spectrum analyzer, cable tester, GPS receiver, and RF test tools in one unit. It supports CW, cdmaOne, CDMA2000 1X, 1xEV-DO, iDEN, W-CDMA (UMTS), HSDPA, GSM, EDGE, GPRS, AMPS, and TDMA technologies, ensuring comprehensive over-air and BTS testing up to 2.5GHz.
Ideal for technicians, it streamlines testing for wireless and wireline BTS, backhaul links, and antenna systems, reducing equipment load and increasing on-site efficiency.
Testwall can supply the used Keysight (Agilent) E7495B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E7495B.
