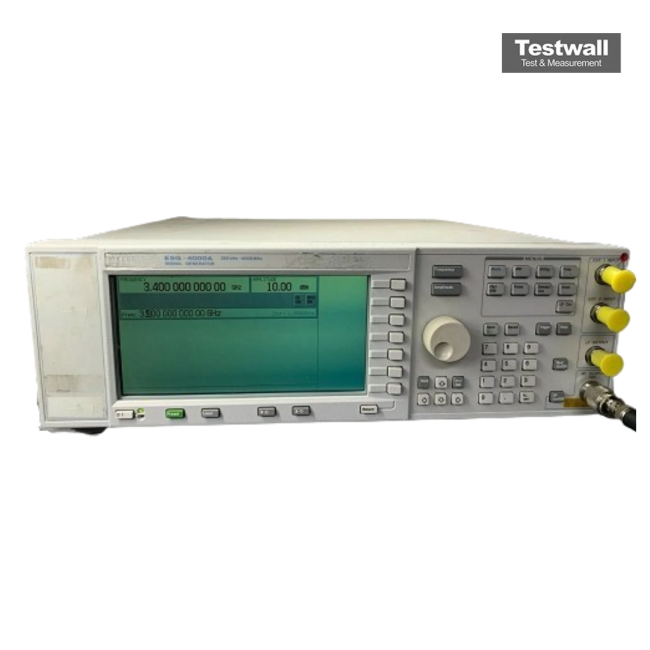

Keysight (Agilent) ESG-D4000
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 4.0 GHz |
| Output Power Range | -136 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, PM, Pulse, I/Q (Digital Vector Modulation) |
| I/Q Modulation Bandwidth | Up to 8 MHz RF bandwidth |
| DCFM/DCΦM Frequency Deviation | Up to 10 MHz FM deviation |
| Switching Speed | Less than 10 ms (list/step sweep mode) |
| Connector Type | Type-N (RF Output), BNC (Modulation Inputs/Outputs) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 200 W maximum |
Keysight (Agilent) ESG-D4000 Analogue/digital 4GHz Signal Generator Options:
- ESG-D4000 - 001 - Upgrade 1Eh To Un3 With 1Mbit Ram
- ESG-D4000 - 002 - Upgrade 1Eh To Un4 With 8 Mbit Ram
- ESG-D4000 - 003 - Retrofit Un4 With 8 Mbit Ram
- ESG-D4000 - 1CM - Rackmount Kit
- ESG-D4000 - 1CN - Front Handle Kit
- ESG-D4000 - 1CP - Rackmount With Handles
- ESG-D4000 - 1E5 - High Stab Timebase
- ESG-D4000 - 1EM - Rear Panel Connectors
- ESG-D4000 - H03 - Single Channel Cdma Capability
- ESG-D4000 - UN3 - Baseband I/Q Generator With 8Mbit Ram (Prbs, Gsm, Dect, Phs + Tetra)
| Model | ESG-D4000 |
|---|
The Keysight (Agilent) ESG-D4000 4GHz Signal Generator delivers outstanding analog and digital performance, supporting modulation formats such as QPSK, OQPSK, BPSK, 16QAM, GMSK, and GFSK. It includes internal burst generators, adjustable data rates, and analog I/Q inputs for advanced RF communications system testing.
Ideal for CDMA, GSM, TETRA, and DECT receiver testing, the ESG-D4000 supports internal/external data generation and dynamic time-slot configurations. Offers modulation accuracy with deviations up to 90 radians.
Testwall can supply the used Keysight (Agilent) ESG-D4000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) ESG-D4000.
