Keysight (Agilent) EXR104A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 1 GHz |
| Sample Rate | 2.5 GSa/s (per channel), 5 GSa/s (interleaved) |
| Memory Depth | 50 Mpts (standard), 500 Mpts (optional) |
| Vertical Resolution | 12-bit ADC |
| Display | 15.6-inch capacitive touch screen, 1920 x 1080 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ |
| Connectivity | USB, LAN (LXI), HDMI, USB Device (USBTMC) |
| Operating System | Windows 10 embedded |
| Model | EXR104A |
|---|

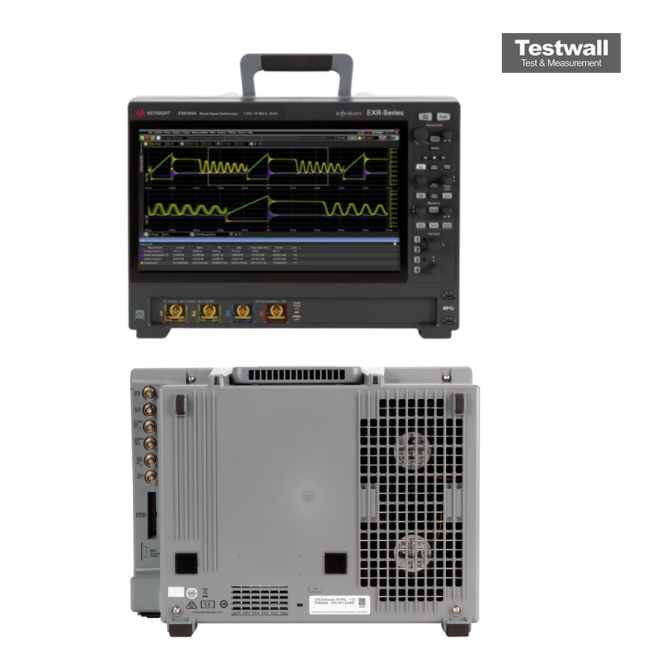

The Keysight (Agilent) EXR104A is a 4-channel, 1GHz bandwidth digital oscilloscope featuring a 16GSa/s sample rate and 10-bit vertical resolution (expandable to 16 bits in high-resolution mode). It offers 100 Mpts of standard memory per channel and an update rate exceeding 200,000 waveforms per second. It integrates a 4-digit DVM and 10-digit counter, all accessible via a 15.6" full HD touchscreen with dual display support.
This oscilloscope is ideal for high-speed signal analysis, supporting advanced triggering and over 50 standard measurements. Options include memory expansion to 1.6Gpts, bandwidth upgrade to 2.5GHz, 50MHz waveform generator, and 16 digital channels.
Testwall can supply the used Keysight (Agilent) EXR104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) EXR104A.
