Keysight (Agilent) J7204A
| Attribute | Value |
|---|---|
| Attenuation Range | 0 to 110 dB |
| Frequency Range | DC to 26.5 GHz |
| Attenuation Step Size | 10 dB |
| Number of Steps | 11 |
| Connector Type | 3.5 mm (male to female) |
| Maximum Input Power | 1 W (30 dBm) |
| Impedance | 50 Ohm |
| VSWR (Maximum) | 1.5:1 |
| Insertion Loss (Minimum Attenuation Setting) | Less than 1.5 dB at DC to 26.5 GHz |
| Operating Temperature Range | 0°C to +55°C |
| Model | J7204A |
|---|

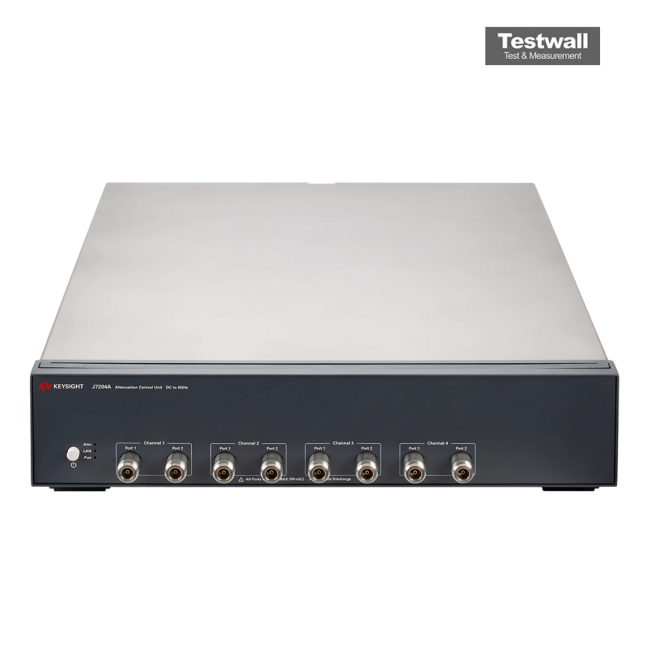

The Keysight (Agilent) J7204A is a 4-Channel Multi-channel Attenuation Control Unit operating from DC to 6 GHz, offering precise attenuation from 0 to 121 dB in 1 dB steps. It features low insertion loss of 2.5 dB at 0 dB setting and a return loss of 14 dB (VSWR 1.50), ensuring optimal signal integrity across applications. Equipped with SMA/Type-N connectors, it supports seamless integration in RF systems.
Ideal for use in RF testing environments, the J7204A provides reliable multi-channel attenuation control with consistent performance over a broad frequency range.
Testwall can supply the used Keysight (Agilent) J7204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J7204A.
