Keysight (Agilent) J7205A
| Attribute | Value |
|---|---|
| Frequency Range | 45 MHz to 1000 MHz |
| Number of Ports | 4 |
| Impedance | 75 Ohm |
| Connector Type | F-Type |
| Insertion Loss | Less than 2 dB |
| Return Loss | Greater than 14 dB |
| Port-to-Port Isolation | Greater than 22 dB |
| Power Handling | Up to 100 mW per port |
| Operating Temperature | 0°C to +55°C |
| Application | Cable TV (CATV) and broadband network testing |
| Model | J7205A |
|---|

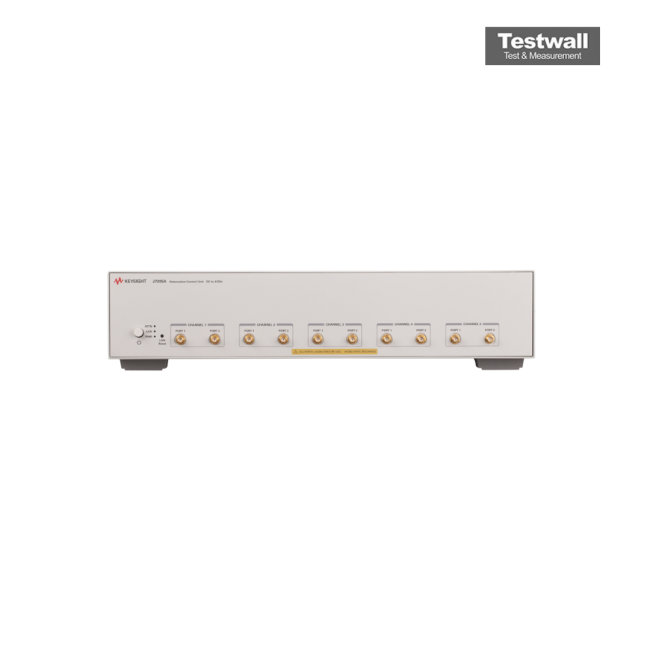

The Keysight (Agilent) J7205A is a 5-Channel Multi-Channel Attenuation Control Unit designed for frequencies from DC to 6 GHz. It offers attenuation ranging from 0 to 121 dB in 1 dB steps across five independent channels. With an insertion loss of 2.5 dB at 0 dB attenuation and return loss of 14 dB (VSWR 1.50), it ensures precise signal control. It comes equipped with SMA/Type-N connectors for flexible integration.
This unit is ideal for automated test setups, RF simulation, and signal path conditioning applications where precise attenuation control is critical.
Testwall can supply the used Keysight (Agilent) J7205A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J7205A.
