Keysight (Agilent) M9383B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 44 GHz |
| Output Power Range | -110 dBm to +23 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -128 dBc/Hz at 1 GHz, 20 kHz offset |
| Form Factor | PXIe (PXI Express), 2-slot module |
| Modulation Types | AM, FM, PM, Pulse, IQ (wideband vector modulation) |
| IQ Modulation Bandwidth | Up to 2 GHz RF bandwidth |
| Switching Speed | Less than 600 µs (frequency and amplitude switching) |
| Power Level Accuracy | ±0.7 dB (typical, at 1 GHz) |
| Interface/Bus | PXIe x8 Gen 2, compatible with PXIe chassis |
Keysight (Agilent) M9383B Options:
- M9383B - F44 - Frequency range 1 MHz to 44 GHz
- M9383B - PMR - Pulse Modulation (basic pulse modulation)
- M9383B - PME - Pulse Modulation (enhanced pulse modulation)
- M9383B - D05 - Internal Baseband Generator, sample rate 1 Hz to 625 MHz
- M9383B - D06 - Internal Baseband Generator, sample rate 1 Hz to 625 MHz
- M9383B - D10 - Internal Baseband Generator, sample rate 1 Hz to 1.28 GHz
- M9383B - D11 - Internal Baseband Generator, sample rate 1 Hz to 1.28 GHz
- M9383B - D20 - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz
- M9383B - D21 - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz
- M9383B - D2E - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz (frequency dependent)
- M9383B - EXT - External I/Q input
- M9383B - DIQ - I/Q baseband output
- M9383B - PCH - Multi-channel baseband synchronization primary/secondary; relative phase adjustments channel 1 versus channel 2
- M9383B - ST5 - Phase noise option (ST5, for use with F32 or F44)
- M9383B - ST6 - Phase noise option (ST6, ultra-low phase noise)
- M9383B - 1EB - Higher maximum output power option
- M9383B - 1EE - Higher maximum output power option
- M9383B - 1EH - Harmonic filters below 2 GHz
- M9383B - 1ES - Spectral purity option
- M9383B - 320 - Pulse train generator (SCPI only), up to 2047 pulse patterns
- M9383B - M05 - 512 MSa arbitrary waveform playback memory
- M9383B - M10 - 1024 MSa arbitrary waveform playback memory
- M9383B - 002 - Dual channel configuration
| Model | M9383B |
|---|

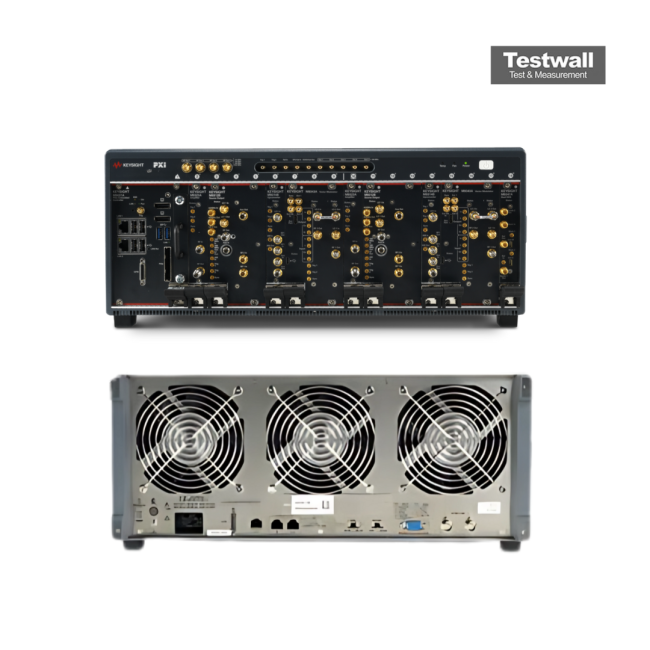

Keysight (Agilent) M9383B VXG-m Microwave Signal Generator
The Keysight M9383B is a Dual-channel PXIe Microwave Signal Generator from Keysight that operates from 1 MHz to 44 GHz with a 2 GHz RF Bandwidth. This signal generator has an output power range from -110 to 23 dBm. The high output power allows it to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing. It has phase cohe LO and baseband synchronization for multi-user or beamforming MIMO OTA testing.
The M9383B signal generator is compatible with Keysight's PathWave Signal Generation software which can help accelerate design and test workflows. It has a new graphical user interface for 5G NR that delivers a streamlined experience when creating standard-compliant test signals. This is the modular version of this Signal Generator, that has no in-built screen. The same Signal Generator is available with a multi-touch screen under Model Number .
Specifications for the Keysight (Agilent) M9383B VXG-m Microwave Signal Generator Include:
| Frequency | 1 MHz to 44 GHz |
| Output Power @1 GHz | -110 dBm to +23 dBm |
| Harmonics @1 GHz | -54 dBc |
| Phase Noise @1 GHz (20 kHz offset) | -140 dBc/Hz |
