Keysight (Agilent)

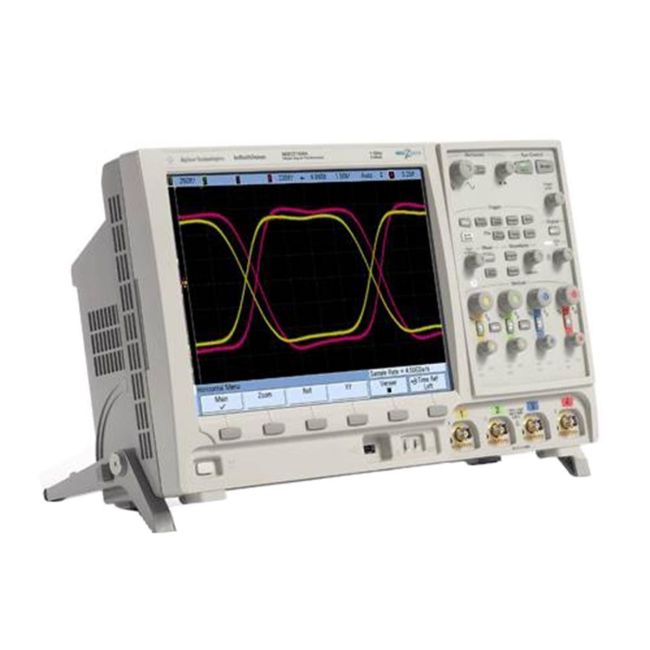

Keysight (Agilent) MSO7054A 500MHz, 4+16 channel Mixed Signal Oscilloscope
500MHz, 4+16 channel Mixed Signal Oscilloscope
500 MHz Bandwidth
4 Analog + 16 Digital (Mixed Signal) Channels
4 GSa/s (on all channels simultaneously) Sample Rate
8 Mpts standard (up to 32 Mpts with option) Memory Depth
8-bit (up to 11-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Channels | 4 Analog + 16 Digital (Mixed Signal) |
| Sample Rate | 4 GSa/s (on all channels simultaneously) |
| Memory Depth | 8 Mpts standard (up to 32 Mpts with option) |
| Vertical Resolution | 8-bit (up to 11-bit with high resolution mode) |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Timebase Range | 1 ns/div to 50 s/div |
| Trigger Types | Edge, Glitch, Pattern, TV, Delay, Timeout, Runt, Setup & Hold, Nth Edge, Serial |
| Display | 12.1-inch XGA color touch screen display |
| Connectivity & Interfaces | USB, LAN (LXI compliant), GPIB (optional), XGA video output |
Keysight (Agilent) MSO7054A 500MHz, 4+16 channel Mixed Signal Oscilloscope Options:
- MSO7054A - SEC - Secure Environment Mode (available at time of purchase only)
- MSO7054A - A6J - ANSI Z540 Compliant Calibration
- MSO7054A - N2735 - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - N2736A - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - N2737A - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - LSS - I2C/SPI Serial Decode Option (N5423A after purchase)
- MSO7054A - AMS - CAN/LIN Automotive Triggering and Decode (N5424A after purchase)
- MSO7054A - FRS - FlexRay Trigger and Decode (N5432A)
- MSO7054A - 232 - UART/RS232 Trigger and Decode (N5457A)
| Model | MSO7054A |
|---|
The Keysight DSOX6004A InfiniiVision 6000 X-Series oscilloscope features 1 GHz bandwidth, four analog channels sampling at 20 GSa/s, and 4 Mpts of memory. Zone triggering and 450,000 wfms/s update make it highly responsive.
Includes 7-in-1 functions like waveform generator, counter, DMM, serial decode; all in a compact 6.8 kg design.
Testwall can supply the used Keysight DSOX6004A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight DSOX6004A.
