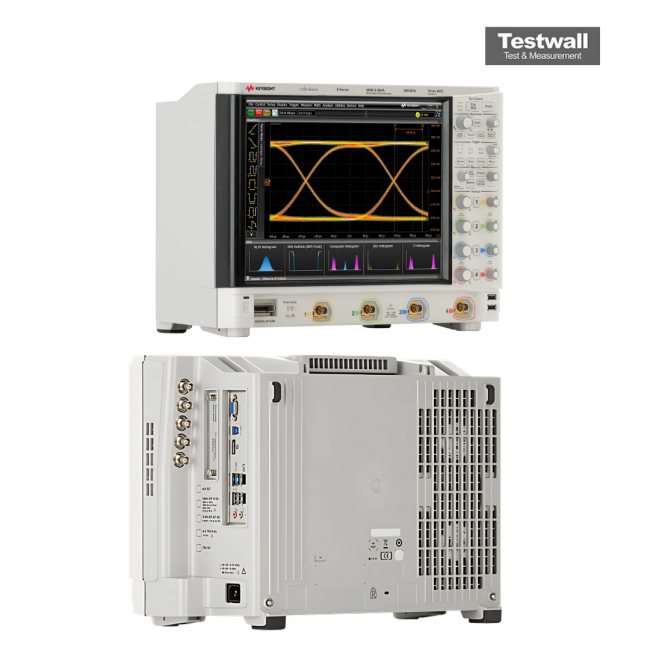

Keysight (Agilent) MSOS054A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 20 GSa/s |
| Memory Depth | 100 Mpts per channel (standard), up to 2 Gpts optional |
| Vertical Resolution | 8-bit (12-bit in high-resolution mode) |
| Oscilloscope Series | Infiniium S-Series |
| Display | 15-inch capacitive touchscreen |
| Noise Floor | Less than 1% full scale (typical) |
| Input Impedance | 50 Ω or 1 MΩ |
| Operating System | Windows 10 |
| Model | MSOS054A |
|---|
The Keysight (Agilent) MSOS054A oscilloscope delivers 500MHz analog bandwidth with 4 analog and 16 digital channels, supporting a 20 GSa/s max sample rate. With 100 Mpts/channel memory and up to 800 Mpts total depth, it ensures precise waveform capture. Its 10-bit ADC and advanced signal processing enhance signal fidelity, while the 15" XGA capacitive touch screen offers intuitive control.
High Resolution mode offers up to 16 bits of vertical resolution for improved noise performance, making the MSOS054A ideal for detailed signal analysis and logic testing.
Testwall can supply the used Keysight (Agilent) MSOS054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOS054A.
