Keysight (Agilent)
Keysight (Agilent) N1060A
Precision Waveform Analyzer
2 or 4 channels (scalable) Number of Channels
Up to 50 GHz Bandwidth
Up to 200 GSa/s Sampling Rate
8-bit ADC resolution Vertical Resolution
50 Ohm Input Impedance
| Attribute | Value |
|---|---|
| Number of Channels | 2 or 4 channels (scalable) |
| Bandwidth | Up to 50 GHz |
| Sampling Rate | Up to 200 GSa/s |
| Vertical Resolution | 8-bit ADC resolution |
| Input Impedance | 50 Ohm |
| Timebase Range | 5 ps/div to 1 s/div |
| Trigger Types | Edge, pattern, and advanced triggering modes |
| Memory Depth | Up to 2 Mpts per channel |
| Connectivity | LAN (LXI), USB, GPIB |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) N1060A Options:
- N1060A - 050 - Two 50 GHz channels
- N1060A - 085 - Two 85 GHz channels
- N1060A - 216 - Supported input rates: 125 MBd to 16 GBd
- N1060A - 232 - Supported input rates: 125 MBd to 32 GBd
- N1060A - 264 - Supported input rates: 125 MBd to 64 GBd
- N1060A - EVA - Integrated variable equalizer
- N1060A - JSA - Jitter spectrum analysis and clock recovery emulation
- N1060A - PTB - Precision timebase, ultra-low random jitter
- N1060A - C0C - Certificate of calibration
- N1060A - UK6 - Commercial calibration certificate with test data
- N1060A - A1F - Two 1.0 mm female to 1.0 mm female adapters
- N1060A - CA1 - Cable pair, 1.0 mm
- N1060A - CA2 - Cable pair (matched), 2.4 mm, 60 cm
- N1060A - DC2 - Two DC blocks, 2.4 mm, 50KHz - 50GHz
- N1060A - DC8 - Two DC blocks, 1.85 mm, 700KHz-67GHz
| Model | N1060A |
|---|

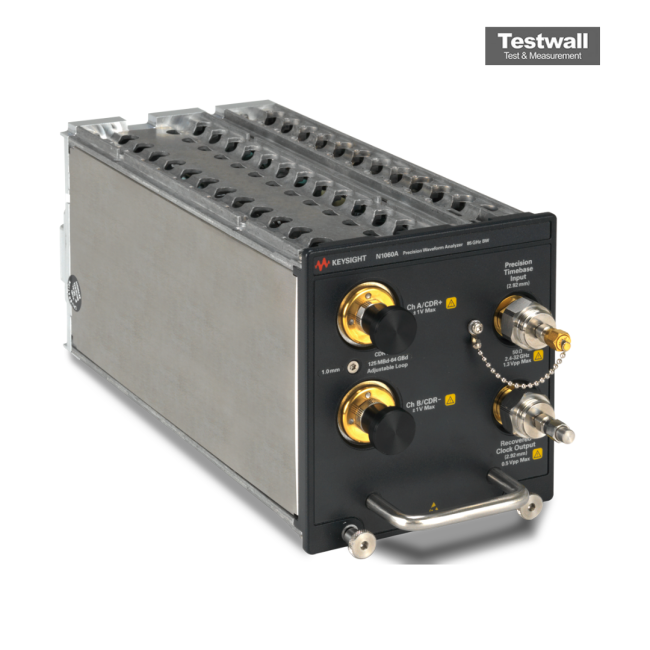

Keysight (Agilent) N1060A Precision Waveform Analyzer
The N1060A precision Waveform Analyzer is a three-slot wide module that combines two electrical channels with a clock recovery (CDR) and a precision timebase (PTB). Integration minimizes path delay differences between the CDR, PTB and the samplers, resulting in more accurate jitter measurements.
€¢ 50 or 85 GHz bandwidth
€¢ 16, 32 or 64 GBd NRZ and PAM4 clock recovery
€¢ Jitter Spectrum Analysis and Clock Recovery Emulation
€¢ Electrical inputs: 1.0 mm male
€¢ Ships with 1.0 female to 1.85 female and 1.0 female to 2.92 female adapters
Specifications for the Keysight (Agilent) N1060A Precision Waveform Analyzer Include:
| Min SIRC Freq (option 050) | 25 GHz |
| Max SIRC Freq (option 050) | 60 GHz |
| Min SIRC Freq (option 085) | 10 GHz |
| Max SIRC Freq (option 085) | 75 GHz |
