Keysight (Agilent) N1268A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3 GHz |
| Output Power | Up to +30 dBm |
| Number of Ports | 4 Ports |
| Impedance | 50 Ohm |
| Connector Type | SMA (f) |
| Amplifier Type | Preamplifier / Booster Amplifier |
| Compatible Instruments | Keysight N1261A, N5181A, N5182A, and related signal generators |
| Power Supply | External DC Power Supply Required |
| Operating Temperature | 0°C to +55°C |
| Dimensions (W x H x D) | Compact Module Form Factor, designed for benchtop or rack integration |
Keysight (Agilent) N1268A Options:
- N1268A - STD - Ultra High Voltage Expander (Mandatory option; furnished with 16493G-001 Digital I/O control cable (1.5m), 16493J-001 Interlock cable (1.5m) and a power cord; does NOT include 16493V 10kV Ultra High Voltage Cable)
- N1268A - A6J - ANSI Z540 compliant calibration
- N1268A - UK6 - Commercial calibration certificate with test data
| Model | N1268A |
|---|

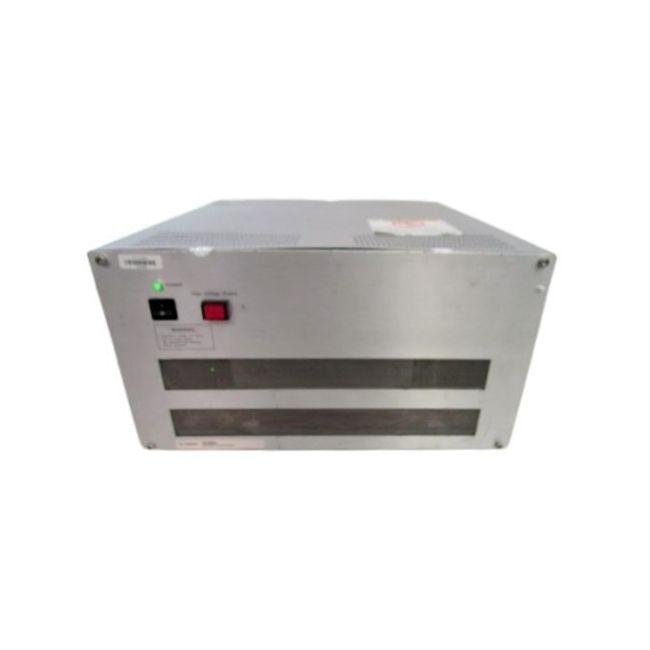

The Keysight (Agilent) N1268A Ultra High Voltage Expander Unit is engineered to work with the B1505A Power Device Analyzer, enhancing its capability to conduct breakdown measurements up to ±10 kV and currents of ±10 mA (DC) or ±20 mA (pulse). It supports configurations with either two B1514A MCSMUs or one B1514A MCSMU and one B1512A HCSMU, making it ideal for high-voltage power device testing like IGBTs.
Its flexibility and precision make it a robust tool for evaluating advanced power semiconductors under high-stress electrical conditions.
Testwall can supply the used Keysight N1268A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight N1268A.
